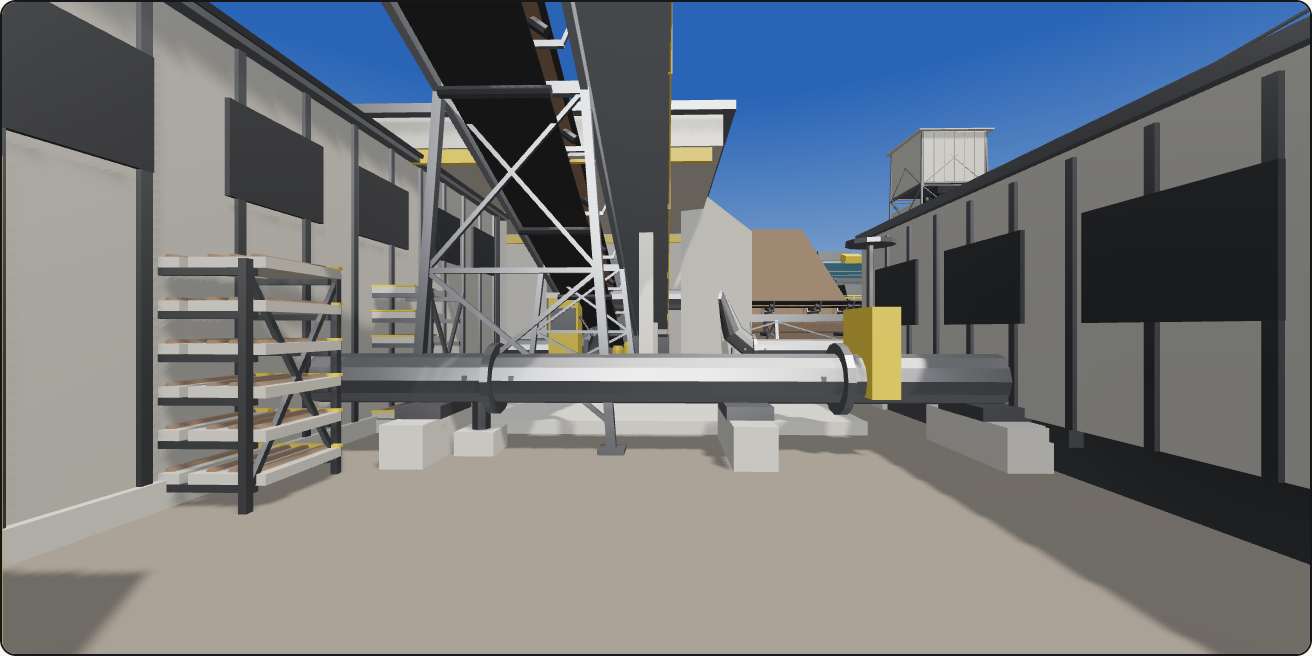

Ore Processing and Haulage Plant: walk the fixed plant
Walk the full fixed plant from weighbridge to rail loadout: dumping, crushing, conveying, stockpiles, grinding, separation, tailings and site services.
About
Walk the fixed plant between a mine and a railhead, from the gate weighbridge in the south to the tailings pond in the north.
What is placed: 51 of the 56 designs as about 200 placements on an 80 by 78 m yard. Receiving (dump pocket, grizzly, jaw crusher, apron feeder, rock breaker), the crushing loop (cone crusher, vibrating screen, sample tower, dust units), a full conveying kit (straight, incline and curve modules, level and rising gallery bridges, two transfer towers, head and tail stations, walkways, trippers, three radial stackers and the 44 m feed flight), stockpiles with a reclaim tunnel, grinding and separation (SAG mill, ball mill, cyclone cluster, thickener, flotation bank, filter press, reagent farm), loadout (silo cluster, rail and truck bins, weighbridge), tailings and water (berms, decant tower, pond edges, spillway, pump house, pipelines, process tank), and site services (assay lab, MCC building, workshop, lamp room, change house, core shed with stocked tray racks, fuel island, site office).
What moves: nothing. The members snapshot lists zero animation clips across all 56 members, so every placement uses the default proximity setting and the plant reads as a working but paused site. No animate flags are set anywhere.
What is static and why: everything is static because the pack ships no clips. The caption points carry the process story instead, one per station along the walk from gate to pond.
What is not placed and why: the five composed environment scenes (plant overview, milling and separation area, stacker stockpile and reclaim tunnel, tailings storage with water plant and services, belt connector cases). Each is a precomposed multi building diorama tens of metres across, so placing even one would swallow the walkable plot. Their member buildings all appear here as individual models.
Every piece here is a published model from the pack, placed by hand. Walk with the keys or touch, and approach a piece to see it move if it has animation. Colliders, navigation and gameplay are yours to add.
Points of interest
Gate and weighbridge
Every load crosses the weighbridge by the site office before it tips. Start here, then walk north past the fuel island to the dump pocket.
Weighbridge and kiosk (Ore Processing and Haulage Plant)Truck dumping
Haul trucks tip into the dump pocket while the pedestal rock breaker handles oversize. The grizzly feeder and apron feeder meter rock to the jaw crusher.
Truck dump pocket (Ore Processing and Haulage Plant)Primary crushing
The jaw crusher station breaks run of mine rock, with the cone crusher and vibrating screen closing the loop. Dust units sit along the whole line.
Primary jaw crusher station (Ore Processing and Haulage Plant)Conveyor spine
Straight, incline and curve modules carry crushed ore east under gallery bridges, through the tall transfer tower to the stockpile trippers.
Conveyor transfer tower (Ore Processing and Haulage Plant)Stockpiles and reclaim
Radial stackers build the coarse cone and the product windrow. The reclaim tunnel draws ore back out to feed the grinding mills.
Reclaim tunnel entrance (Ore Processing and Haulage Plant)Grinding
The SAG mill and ball mill grind ore to slurry, with the cyclone cluster sorting fines. The long feed flight climbs in from the stockpile side.
Semi-autogenous grinding mill (Ore Processing and Haulage Plant)Separation
Flotation banks, the thickener, the filter press and the reagent farm turn slurry into concentrate. The sample tower checks grades along the way.
Flotation cell bank (Ore Processing and Haulage Plant)Rail loadout
Concentrate leaves through the silo cluster and the rail loadout bin, with a truck bin beside it for road haulage to the railhead.
Rail loadout bin with clam gate (Ore Processing and Haulage Plant)Tailings and water
Berms ring the tailings pond where the decant tower returns water. The pump house, pipelines, process tank and spillway close the water loop.
Pond decant tower (Ore Processing and Haulage Plant)
Use with an AI agent
Copy this prompt into your AI chat to rebuild the layout, then describe what to change.
Rebuild the "Ore Processing and Haulage Plant: walk the fixed plant" demo scene from the Ore Processing and Haulage Plant pack in my project. Layout (JSON, every placement with its CDN URL): https://3dassets.dev/api/v1/demos/ore-processing-and-haulage-plant Pack manifest: https://3dassets.dev/api/v1/packs/ore-processing-and-haulage-plant Demo page: https://3dassets.dev/demos/ore-processing-and-haulage-plant - 200 placements of 51 models; units are metres, +Y up, rotation is yaw in degrees about +Y - Spawn at (0, 0, 34) facing 180 degrees; eye height 1.6 m - Licence: CC0 1.0 Universal (no attribution required) - Loading: three.js GLTFLoader, one load per distinct model, cloned per placement; no decoders required
Also available as JSON or Markdown, and via the MCP server.
Common questions
How do I use this scene with my AI development tools?
How do I get started?
Which game engines and tools can I use this scene with?
How do I import this scene into Unity, Godot, Unreal or Blender?
Can I use this scene in a commercial game, and do I need to credit anyone?
Can I load it from the CDN instead of downloading it?
Is the demo itself a file I can download?
Can I change the scene, or add gameplay to it?
Models in this demo
Truck dump pocket (Ore Processing and Haulage Plant)
A reinforced concrete truck dump pocket: back and wing retaining walls, a sloping pocket floor, cast wheel stops with hi-vis kerbs, a static grizzly grating over the mouth, a dust curtain of hanging rubber strips on a portal frame, crest handrails and an access stair.
Vibrating grizzly feeder (Ore Processing and Haulage Plant)
A spring mounted vibrating grizzly feeder on a braced lattice support: a stiffened pan with tapered grizzly bars over the discharge, an exciter drive and motor guard, a bolted feed hopper, separate oversize and undersize chutes and a handrailed access platform with a stair.
Primary jaw crusher station (Ore Processing and Haulage Plant)
A primary jaw crusher on a concrete plinth: a fabricated frame swelling from the discharge throat to a lined feed mouth, twin flywheels, a guarded V belt drive and motor, a rear toggle and tension rod, a discharge chute to grade and handrailed platforms with a stair.
Heavy duty apron feeder (Ore Processing and Haulage Plant)
A heavy duty apron feeder under a receiving hopper: a chain of overlapping steel pans on carry and return strands, head and tail sprockets, a planetary drive on a skid, angled skirt plates, a braced side frame and a walkway with a handrail and toe board.
Pedestal rock breaker (Ore Processing and Haulage Plant)
A pedestal mounted hydraulic rock breaker for oversize at a dump pocket: a concrete plinth and slew pedestal, a slew house, a fabricated boom and stick on cylinders, a hydraulic hammer with a chisel, hose runs and a control stand at grade.
Secondary cone crusher (Ore Processing and Haulage Plant)
A secondary cone crusher on a braced lattice support frame: a stepped main frame with radial arms, an adjustment ring with spring loaded tie rods, a bowl and feed hopper with a spider cap, a countershaft drive and motor, a hydraulic power unit skid and a discharge chute.
Double deck vibrating screen (Ore Processing and Haulage Plant)
An inclined double deck vibrating screen: a ribbed screen box on coil spring mounts in a braced lattice frame, an exciter drive and guard on a bridge over the box, a feed box at the high end, two discharge chutes and an access platform with a stair.
Sample tower (Ore Processing and Haulage Plant)
A clad sample tower on a braced lattice frame: a cross belt sampler head, a sample crusher and a rotary divider stacked over flanged chutes, a reject chute back to the belt, a sample collection cabinet at grade, grating decks and an external stair tower.
Skid mounted dust suppression unit (Ore Processing and Haulage Plant)
A skid mounted dust suppression set: a bolted water tank with a ladder, a pump and motor, a control cubicle, suction and discharge pipework with a strainer, a spray bar arch of nozzles over the belt line and a fan cannon on a turret.
Overland conveyor module, 12 m straight (Ore Processing and Haulage Plant)
A 12 m level overland conveyor module: two stringers on braced trestle bents with longitudinal X bracing, a 1.2 m troughed belt on 35 degree three roll idlers, a return strand on flat idlers, and an access walkway on one side with handrails and a toe board.
Overland conveyor module, 12 m incline (Ore Processing and Haulage Plant)
A 12 m conveyor module climbing 3 m at 14 degrees: taller braced trestle bents toward the high end, the same troughed belt and idler set, a climbing walkway with handrails and a toe board, and a holdback drive on a plinth beside the low end.
Overland conveyor module, 30 degree horizontal curve (Ore Processing and Haulage Plant)
A 12 m conveyor module turning 30 degrees on a 22.9 m radius: curved stringers on braced bents set square to the arc, the troughed belt and idler frames rotated to follow the curve, and a curved walkway with handrails and a toe board on the outside of the turn.
Conveyor gallery bridge, 12 m level span (Ore Processing and Haulage Plant)
A 12 m enclosed conveyor gallery that spans between transfer towers with no legs of its own: a braced through truss on bearing shoes, a grating floor, the belt on cross beams and troughing idlers, an internal walkway, side sheeting and a monopitch roof.
Conveyor gallery bridge, 12 m rising span (Ore Processing and Haulage Plant)
A 12 m conveyor gallery that climbs 3 m between transfer towers: the same braced through truss and sheeting with a rising bottom chord, stepped bearing shoes, the belt and idlers set on the slope and a climbing internal walkway.
Conveyor transfer tower (Ore Processing and Haulage Plant)
An 18 m four leg braced lattice transfer tower: four handrailed grating decks, an internal stair tower, the incoming head pulley, snub pulley and drive at 14.4 m, a flanged chute dropping 3 m through a bend, and the outgoing belt tail turned 90 degrees at 11.4 m.
Conveyor head pulley and drive station (Ore Processing and Haulage Plant)
A 6 m conveyor head station: a lagged head pulley in an A frame under the stringers, a snub pulley, a belt scraper, a gearbox and motor drive with a coupling guard, a flanged discharge chute to grade and a handrailed maintenance platform reached by a stair.
Conveyor tail pulley and take-up station (Ore Processing and Haulage Plant)
A 6 m conveyor tail station: a tail pulley on a braced frame, a feed hopper with angled skirt boards, and a gravity take-up with two bend pulleys, a guided counterweight box and its guide frame on a concrete pad.
Conveyor tripper car (Ore Processing and Haulage Plant)
A rail mounted tripper car: a braced steel frame on four flanged wheels riding travel rails over the conveyor, the belt lifted through an S bend over two pulleys, a two way discharge chute on a hinge, an access platform with handrails, a ladder and a small operator cabin.
Radial stacking conveyor (Ore Processing and Haulage Plant)
A radial stacking conveyor: a luffing boom on a slew ring over a concrete pedestal, an A frame mast with tie rods and a counterweight, a 21 m braced boom truss carrying a troughed belt and a walkway, a discharge head with drive and chute, and a two wheel travel bogie.
Inclined feed conveyor flight, 44 m (Ore Processing and Haulage Plant)
A 44 m inclined conveyor flight climbing 12 m to a silo roof or transfer tower: stringers on two trestle bents and four braced lattice towers, a troughed belt on idlers, a climbing walkway with a toe board, and a head pulley, drive, chute and stair tower.
Elevated plant walkway module, 12 m (Ore Processing and Haulage Plant)
A 12 m elevated access walkway module on braced trestle bents with longitudinal X bracing: a grating deck on edge channels, handrails and toe boards both sides and a stair down to grade. It bolts alongside a conveyor run or between plant areas.
Coarse ore stockpile cone (Ore Processing and Haulage Plant)
A live coarse ore stockpile: a 30 m conical pile at the angle of repose with a drawn down crest above the reclaim feeders and coarse rock spilled around the toe.
Product stockpile windrow (Ore Processing and Haulage Plant)
A long product stockpile: a 38 m windrow with battered ends, a flat reclaim pad worked into one flank and spilled product around the toe.
Reclaim tunnel entrance (Ore Processing and Haulage Plant)
The daylight end of a reclaim tunnel: a reinforced concrete portal with a headwall, soffit and flared wing walls, the stockpile embankment carried over it, and the reclaim conveyor climbing out on braced trestles with a walkway, handrails and a toe board.
Semi-autogenous grinding mill (Ore Processing and Haulage Plant)
A semi-autogenous grinding mill: an 8 m bolted shell with flanged heads on trunnion bearings and concrete piers, a girth gear in a guard driven through a pinion motor, a feed chute, a discharge trommel, lube skids and handrailed platforms.
Ball mill with central drive (Ore Processing and Haulage Plant)
A ball mill: a long 5.2 m bolted shell on trunnion bearings with a central gear guard driven by pinion gearboxes both sides, a feed spout chute, a discharge trommel over a cyclone feed sump with a pump skid and riser, and a handrailed platform.
Hydrocyclone cluster (Ore Processing and Haulage Plant)
A radial hydrocyclone cluster on a braced lattice support: a distributor drum on a riser feeding eight cyclones through valved pipework, long cones with vortex finders, overflow and underflow launder rings with a discharge pipe, a handrailed deck and a caged ladder.
Thickener with rake bridge (Ore Processing and Haulage Plant)
An 18 m thickener: a concrete tank with crest and overflow launders, a full span bridge truss with handrailed walkways carrying the rake drive head, a feedwell on the centre column, rake arms and blades below the liquor surface, and pipework.
Flotation cell bank (Ore Processing and Haulage Plant)
A bank of five flotation tank cells on a common concrete plinth: stepped cell heights, froth launders on both faces with collection pipes, rotor drives on bridges over each cell, dart valve control boxes between cells and a handrailed walkway along the bank with a stair.
Plate and frame filter press (Ore Processing and Haulage Plant)
A side beam plate and frame filter press on a concrete plinth: two end frames, heavy side beams, a stack of eighteen filter plates, a hydraulic closing cylinder and power pack, a filtrate manifold and drip tray, an overhead plate shifter rail and a handrailed service platform.
Reagent tank farm (Ore Processing and Haulage Plant)
A bunded reagent tank farm: four agitated mixing tanks of different sizes with bolted courses and roof plates, agitator drives on bridges with shafts and impellers, caged ladders, a pipe manifold with drop legs, a dosing pump skid and a safety shower and eyewash.
Product silo cluster (Ore Processing and Haulage Plant)
Three concrete product silos on column bases: bolted ring beams and pile caps, discharge cones with slide gates and chutes, a linked steel roof deck with handrails, roof vents and access hatches, and a braced external stair tower with a landing.
Rail loadout bin with clam gate (Ore Processing and Haulage Plant)
A rail loadout bin straddling standard gauge track on four braced lattice legs: a stiffened surge bin over a wedge hopper, a clam gate with two hinged leaves on rams, a telescopic spout with a dust skirt, an operator cabin and a stair tower.
Truck loadout bin (Ore Processing and Haulage Plant)
A truck loadout bin on braced lattice legs over a concrete road lane: a surge bin with stiffener bands, a chute with a dust skirt, kerb wheel guides with hi-vis posts, a traffic light mast and boom, and a handrailed gate platform reached by a stair.
Weighbridge and kiosk (Ore Processing and Haulage Plant)
A pit mounted weighbridge: an 18 m steel deck on load cell mounts in a concrete pit, concrete approach ramps and guide kerbs, hi-vis edge rails, an indicator post with a display, a traffic light and a small weigh kiosk on its own pad.
Tailings embankment berm module (Ore Processing and Haulage Plant)
A 16 m module of tailings dam crest: a rockfill embankment section with a placed riprap upstream face, a crest haul road with edge windrows and survey marker posts, a toe drain and a decant pipe running along the toe, with pond water lapping the upstream slope.
Pond decant tower (Ore Processing and Haulage Plant)
A decant tower rising from a tailings pond: a stepped concrete shaft with stop log slots and a part filled log stack, a handrailed deck with a lifting davit and hand winch, an access catwalk on braced trestles out to the bank, a caged ladder and the decant pipe on sleepers.
Settling pond edge module (Ore Processing and Haulage Plant)
An 18 m module of settling pond edge: a compacted bank with a placed gravel beach, the water surface, a silt fence on stakes along the crest, a staff gauge at the water line, an outlet pipe through the bank to a headwall and a short handrail run.
Spillway chute and stilling basin (Ore Processing and Haulage Plant)
A concrete spillway: an approach apron with a weir sill and stop log slots, a chute between training walls dropping to a stilling basin with two rows of baffle blocks and an end sill, handrails along both walls and riprap at the outlet.
Slurry pump house (Ore Processing and Haulage Plant)
A clad pump house on a bunded slab with the gable end open: a slurry pump volute and motor on a concrete plinth, suction and discharge pipework with a knife gate valve and a flanged nozzle, a gland water tank and a control cubicle outside.
Process water tank (Ore Processing and Haulage Plant)
A 10 m bolted steel process water tank on a concrete ring beam: lapped plate courses with joint bands, a conical roof with a hatch, a handrailed roof access area, a caged external ladder, a roof vent, an overflow downcomer, valved side nozzles and a level indicator board.
Slurry pipeline module, 16 m (Ore Processing and Haulage Plant)
A 16 m module of slurry pipeline on concrete sleepers with steel saddles and clamps: a raised expansion loop, four bolted flange joints, a knife gate valve with a handwheel and a drain tee to a plinth.
Assay laboratory (Ore Processing and Haulage Plant)
A clad gable assay laboratory: a ribbed sheet building on a concrete plinth with a roller shutter, personnel door and canopy, window bands, four roof mounted fume extraction stacks with cowls, an air handling unit on brackets and a bottled gas cage.
Electrical MCC building (Ore Processing and Haulage Plant)
A clad monopitch switchroom: a ribbed sheet building on a raised plinth with louvred vents, double doors under a canopy with a handrailed landing, a cable ladder gantry into the back wall, trench covers and a fenced transformer bay.
Maintenance workshop (Ore Processing and Haulage Plant)
A tall clad gable workshop on a concrete hardstand: two roller doors, window bands and ribbed cladding, a monorail hoist beam projecting from the gable with a trolley and hook block, three roof ventilators, a lean-to store on one side and a kerbed wash bay with a parts rack.
Lamp room (Ore Processing and Haulage Plant)
A small clad monopitch lamp room: an entry canopy on posts over a concrete step, a wide issue hatch with a counter, three charging racks of cap lamps visible behind it, a rescuer cabinet and a notice board outside.
Change house (Ore Processing and Haulage Plant)
A long clad gable change house: a covered entry walkway on columns with a handrail, double doors and window bands, five ridge ventilators, a boot wash trough with a hose reel and a bench outside.
Core shed (Ore Processing and Haulage Plant)
An open sided core shed: six portal frames on a concrete slab with knee braces, purlins and a monopitch sheeted roof, gutters and a downpipe, and cross bracing in the end bay.
Fuel island (Ore Processing and Haulage Plant)
A fuel island on a concrete forecourt: a canopy on four columns with a hi-vis fascia and lights, a kerbed island with two dispensers, hoses and nozzles, a self bunded diesel tank with a ladder and handrailed top, fill pipework, bollards and a spill kit cabinet.
Modular site office (Ore Processing and Haulage Plant)
A modular site office on transport skids: a ribbed clad body with a window band both sides, a door with a canopy, a grating entry deck with handrails and a stair, two roof mounted air conditioners and a cable entry box.
Core tray rack (Ore Processing and Haulage Plant)
A bolted steel core tray rack with cross braced ends and six shelf levels, each carrying four drill core trays with five channels of core and a hi-vis label strip.
