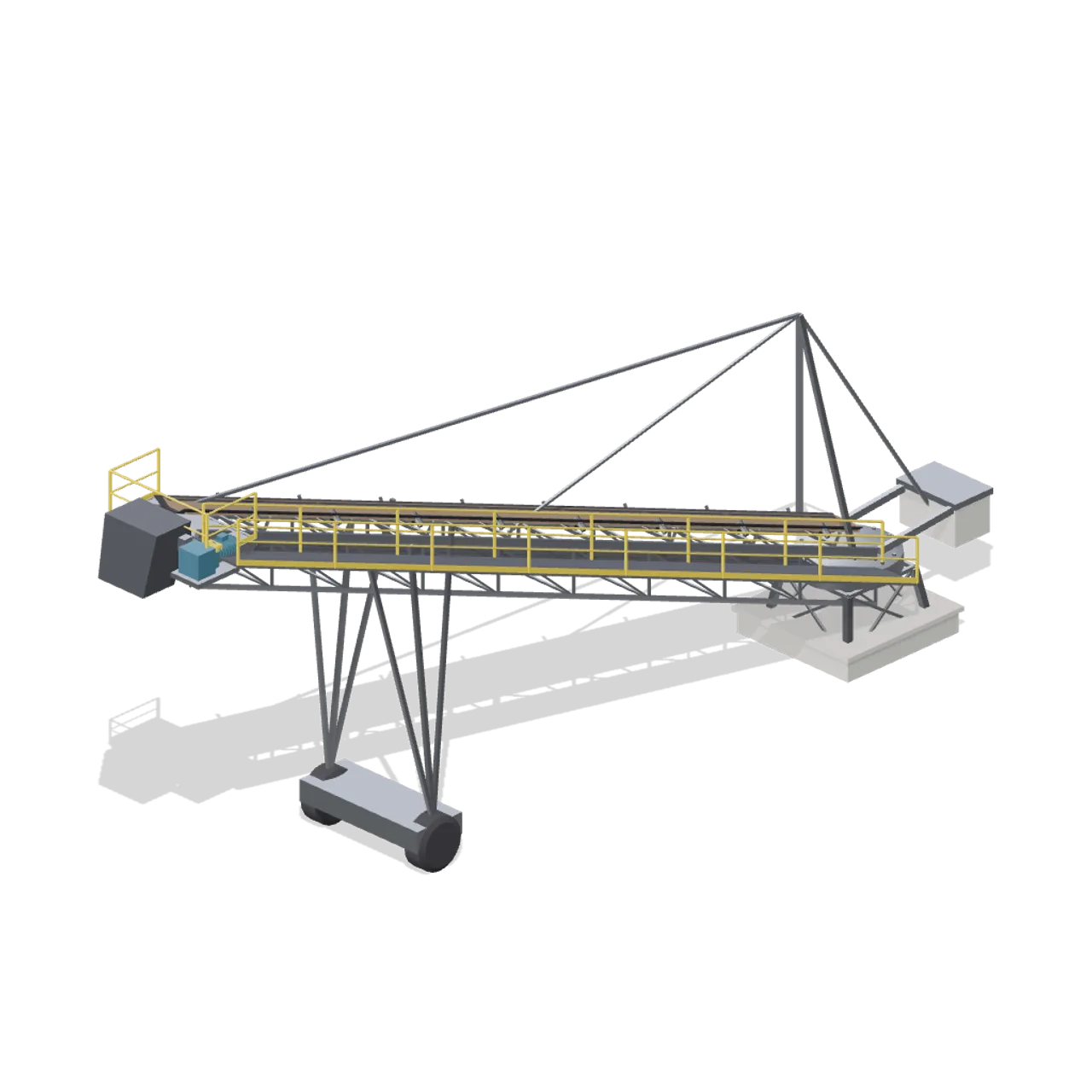

A radial stacking conveyor: a luffing boom on a slew ring over a concrete pedestal, an A frame mast with tie rods and a counterweight, a 21 m braced boom truss carrying a troughed belt and a walkway, a discharge head with drive and chute, and a two wheel travel bogie. Dimensions 3.81 by 10.40 by 24.37 m (X by Y by Z), metre units, +Y up, +Z forward, resting on y=0. Belt ports belt-a at 0.00, 2.40, -1.60. Named pivot nodes: boom, wheel-left, wheel-right. The boom swings about the slew ring; wheel nodes spin about their axles. Static geometry; no rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Radial stacking conveyor (Ore Processing and Haulage Plant)” asset in my project. Model: https://cdn.3dassets.dev/assets/13399/v1/model.glb Asset page: https://3dassets.dev/assets/ore-processing-and-haulage-plant-radial-stacker-8b8f21c3 Description: A radial stacking conveyor: a luffing boom on a slew ring over a concrete pedestal, an A frame mast with tie rods and a counterweight, a 21 m braced boom truss carrying a troughed belt and a walkway, a discharge head with drive and chute, and a two wheel travel bogie. - Dimensions (X × Y × Z): 3.806 × 10.398 × 24.374 metres - Triangles: 5.2k - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/13399/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Common questions
How do I use this model with my AI development tools?
How do I get started?
Which game engines and tools can I use this model with?
How do I import this model into Unity, Godot, Unreal or Blender?
Can I use this model in a commercial game, and do I need to credit anyone?
Can I load it from the CDN instead of downloading it?
Do I need Draco, Meshopt or KTX2 to load it?
Radial stacking conveyor (Ore Processing and Haulage Plant)
A radial stacking conveyor: a luffing boom on a slew ring over a concrete pedestal, an A frame mast with tie rods and a counterweight, a 21 m braced boom truss carrying a troughed belt and a walkway, a discharge head with drive and chute, and a two wheel travel bogie.
