A 12 m conveyor module turning 30 degrees on a 22.9 m radius: curved stringers on braced bents set square to the arc, the troughed belt and idler frames rotated to follow the curve, and a curved walkway with handrails and a toe board on the outside of the turn. Dimensions 4.04 by 2.92 by 12.84 m (X by Y by Z), metre units, +Y up, +Z forward, resting on y=0. Belt ports belt-a at 0.78, 2.40, -5.93; belt-b at 0.78, 2.40, 5.93. Static geometry; no rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Overland conveyor module, 30 degree horizontal curve (Ore Processing and Haulage Plant)” asset in my project. Model: https://cdn.3dassets.dev/assets/13393/v1/model.glb Asset page: https://3dassets.dev/assets/ore-processing-and-haulage-plant-conveyor-curve-30deg-abac40f2 Description: A 12 m conveyor module turning 30 degrees on a 22.9 m radius: curved stringers on braced bents set square to the arc, the troughed belt and idler frames rotated to follow the curve, and a curved walkway with handrails and a toe board on the outside of the turn. - Dimensions (X × Y × Z): 4.042 × 2.922 × 12.837 metres - Triangles: 3.2k - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/13393/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Overland conveyor module, 30 degree horizontal curve (Ore Processing and Haulage Plant)

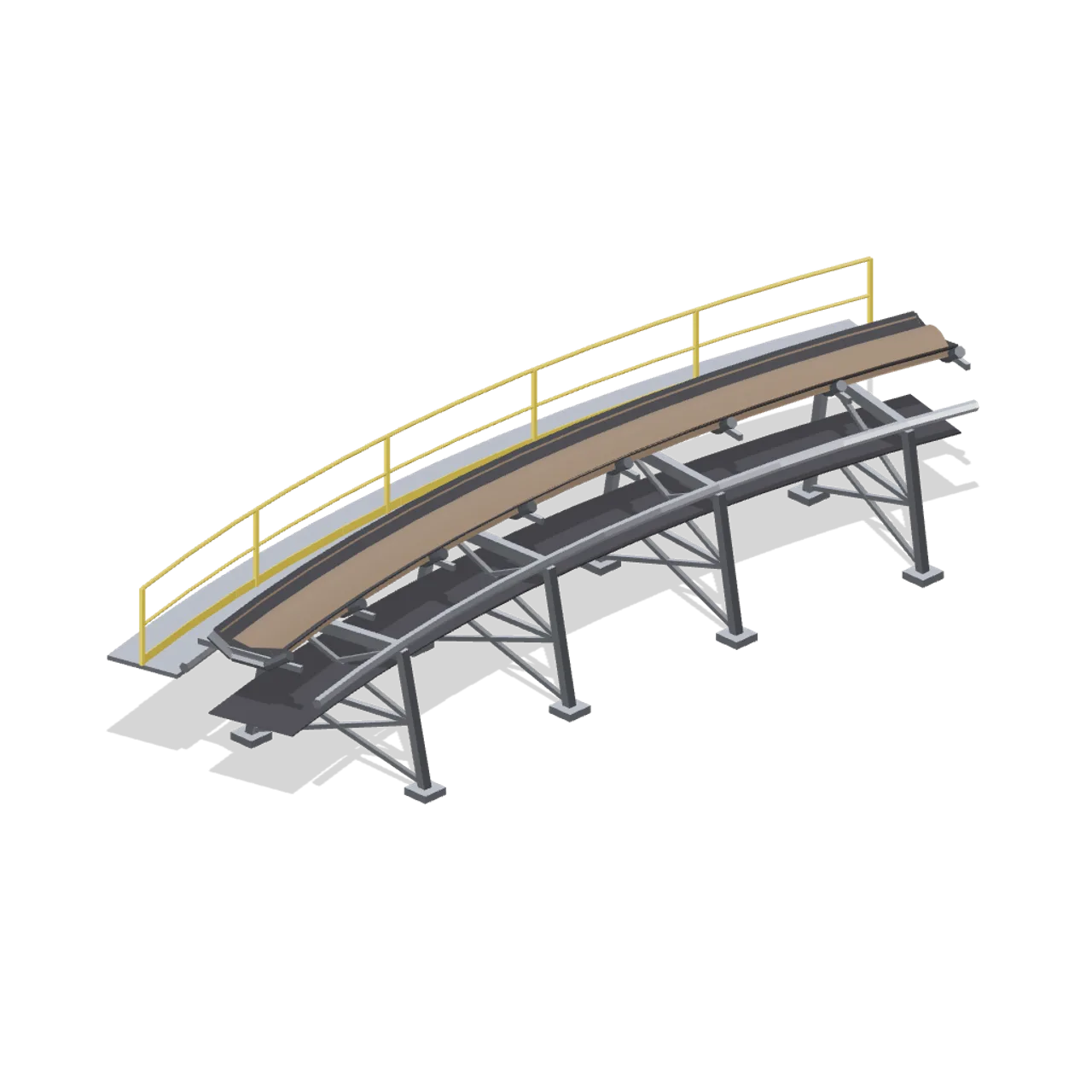

A 12 m conveyor module turning 30 degrees on a 22.9 m radius: curved stringers on braced bents set square to the arc, the troughed belt and idler frames rotated to follow the curve, and a curved walkway with handrails and a toe board on the outside of the turn.
