About

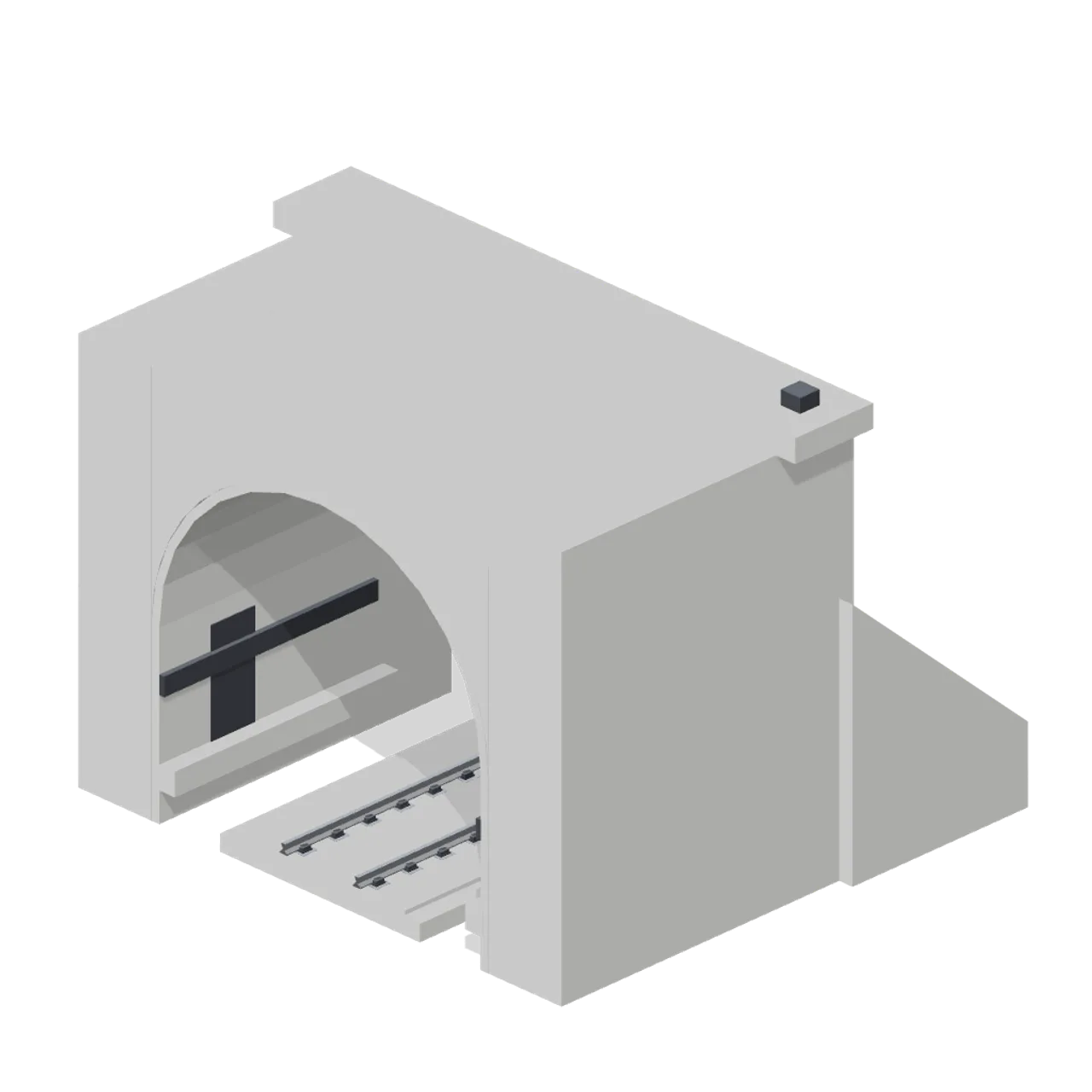

A single track tunnel portal 6 m deep: a concrete headwall with a horseshoe bore 6.6 m wide and 6.4 m to the crown, a cornice above it, splayed wing walls each side, a lined bore running back from the face with a cable route and a refuge niche in each side wall, and a slab track floor so the module chains to plain track. Ballast base at y=0, concrete sleeper tops at y=0.41 and railhead top at y=0.60; 1,435 mm gauge with rail centres at x = +/- 0.7525. The module origin sits on the rail-a port at the track centreline and the module runs toward +Z on the 6 m grid. Bounding size 10.72 x 8.08 x 9.30 m (X x Y x Z). Metre units, +Y up, +Z forward, resting at y=0. Static geometry; no rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Tunnel portal with slab track (Modern Rail and Metro Network)” asset in my project. Model: https://cdn.3dassets.dev/assets/13692/v1/model.glb Asset page: https://3dassets.dev/assets/modern-rail-and-metro-network-tunnel-portal-f7d066da Description: A 6 m concrete tunnel portal with a horseshoe bore, cornice, splayed wing walls and slab track through it. - Dimensions (X × Y × Z): 10.72 × 8.08 × 9.3 metres - Triangles: 1.8k - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/13692/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Tunnel portal with slab track (Modern Rail and Metro Network)
A 6 m concrete tunnel portal with a horseshoe bore, cornice, splayed wing walls and slab track through it.
