About

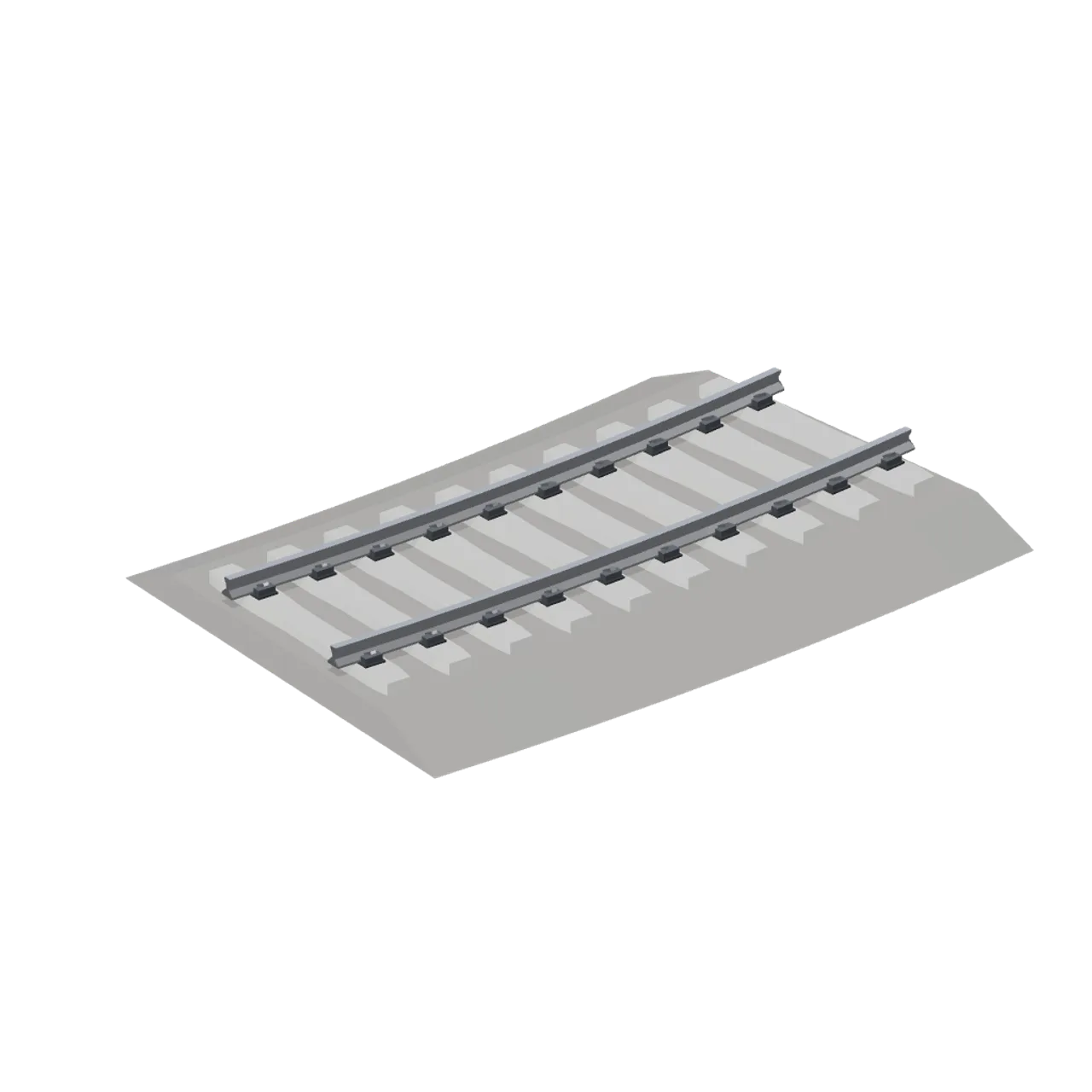

A curved 6 m ballasted module turning 10 degrees to the left on a 34.4 m centreline radius, the same 6 m along the rails as the straight module. Mirror the placement rotation to turn right. Ballast base at y=0, concrete sleeper tops at y=0.41 and railhead top at y=0.60; 1,435 mm gauge with rail centres at x = +/- 0.7525. The module origin sits on the rail-a port at the track centreline and the module runs toward +Z on the 6 m grid. Bounding size 4.89 x 0.60 x 6.35 m (X x Y x Z). Metre units, +Y up, +Z forward, resting at y=0. Static geometry; no rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Ballasted track curve 10 degrees (Modern Rail and Metro Network)” asset in my project. Model: https://cdn.3dassets.dev/assets/13686/v1/model.glb Asset page: https://3dassets.dev/assets/modern-rail-and-metro-network-ballasted-track-curve-10-5ff17192 Description: A 6 m ballasted curve turning 10 degrees on a 34.4 m radius, for depot and metro alignments. - Dimensions (X × Y × Z): 4.889 × 0.6 × 6.352 metres - Triangles: 2.3k - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/13686/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Ballasted track curve 10 degrees (Modern Rail and Metro Network)
A 6 m ballasted curve turning 10 degrees on a 34.4 m radius, for depot and metro alignments.
