Walkable demo
Machine shop and factory hall

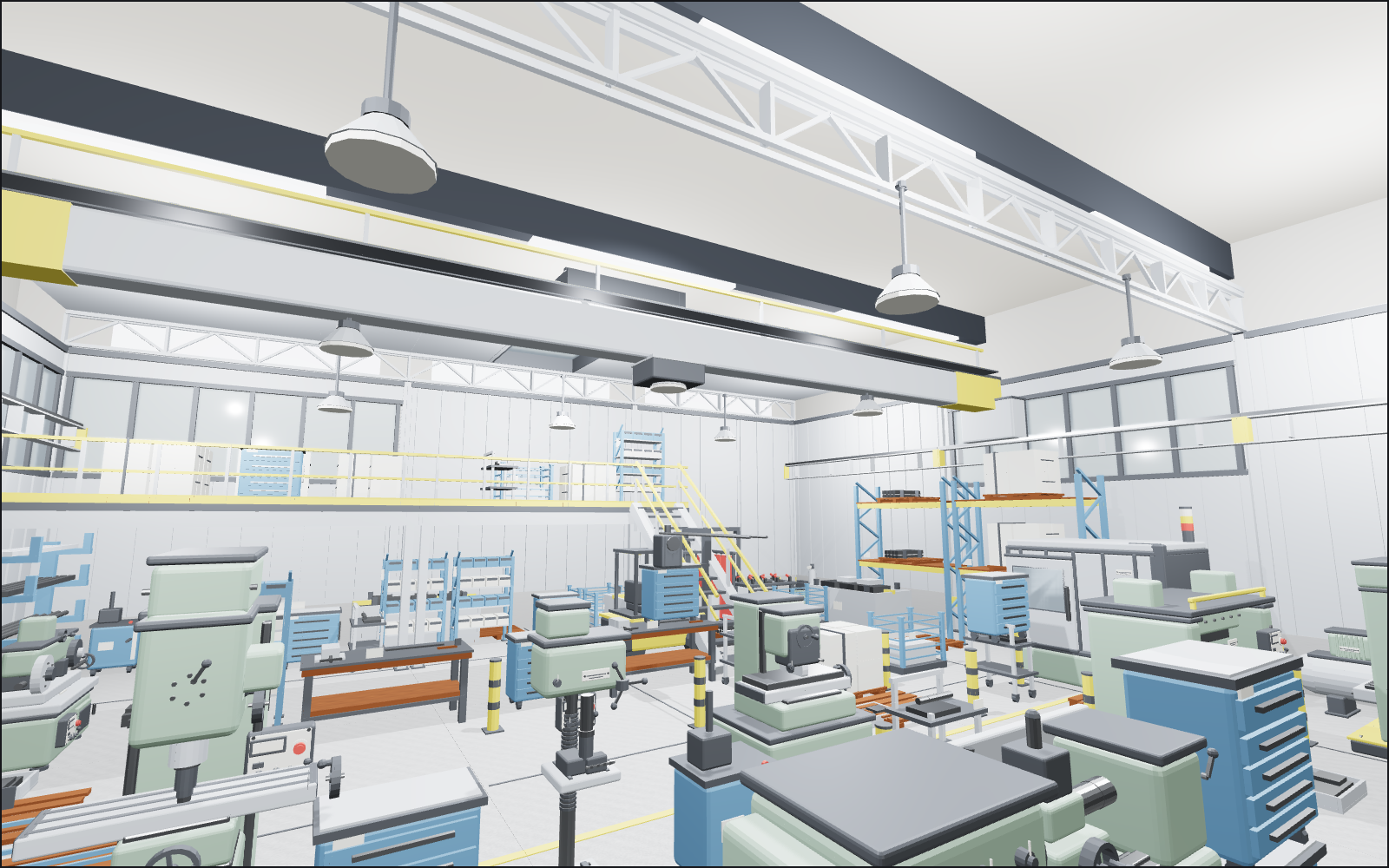

Walk the floor of a working machine shop built from the Machine Shop and Factory Hall pack: an engine lathe, mill, drill, grinders, presses and a CNC centre at their stations under a gantry crane, with the mezzanine stores, racking, forklift and welding bay around them.
About
An 18 by 18 metre steel hall from 48 of the pack's 68 models, on the pack's own 6 m concrete floor tiles inside its cladding bays, columns and roof trusses, under the hall preset's cool light with the high bay fittings.
You start at the open front of the hall facing the machine rows. The engine lathe and the bench lathe are in front of you, then the vertical mill, pillar drill, surface grinder, bandsaw, hydraulic press and press brake in rows, each with a tool cabinet, coolant tank, chip tray and swarf pile at its station and yellow bollards guarding the aisles. The CNC machining centre stands along the right wall with the compressor. The gantry crane bridge spans the hall on its runway rails.
At the back the two mezzanine bays with their stair sit over the racking, stillages, pallets of cartons and bar stock, parts bin shelving and trolleys; the welding bay is in the right rear corner with its table, screen, MIG welder, powder coating oven and parts washer. The roller shutter and personnel door are on the left wall with the forklift, the cantilever bar rack, oil drums on their tipping stands and the scrap skip by the entrance.
What moves: chucks, spindles, wheels and the bandsaw blade wheel spin, the lathe carriage and the mill table travel, the press rams stroke, the CNC door slides, the roller shutter rolls up, the personnel door, oven door, parts washer lid and the top tool cabinet drawer open and close, the crane trolley traverses and the forklift rolls its wheels and lifts its mast. What does not: belts, hoses, cables and the crane girder are static, and there are no figures.
Every piece here is a published model from the pack, placed by hand. Walk with the keys or touch, and approach a piece to see it move if it has animation. Colliders, navigation and gameplay are yours to add.
Points of interest
The engine lathe
A 2.4 m bed engine lathe: the chuck spins, the carriage travels the bed and the tailstock handwheel turns as you approach. Filleted sage enamel castings, spoked handwheels and a control panel with its emergency stop.
Engine lathe with 2.4 m bed (Machine Shop and Factory Hall)The CNC centre
The machining centre slides its front door open on approach, with the control pendant beside it and a tool cabinet, coolant tank and chip tray at the station like every machine in the hall.
CNC machining centre with sliding door (Machine Shop and Factory Hall)The gantry crane
The crane bridge spans the hall on runway rails at 4 m and traverses its trolley as you pass beneath. The girder itself is static: the builder only parents single-part nodes.
Overhead gantry crane bridge with trolley (Machine Shop and Factory Hall)The mezzanine and stores
Two mezzanine bays with handrails over the racking and stillages, reached by the 3 m stair. Pallets of cartons and bar stock, parts bins and trolleys fill the stores below.
Mezzanine floor bay with handrail, 6 m (Machine Shop and Factory Hall)The welding bay
The welding table with its clamps behind the red screen, the MIG welder on its bottle cart, the powder coating oven with a hinged door and the parts washer with a lift lid in the far corner.
Welding table with clamps (Machine Shop and Factory Hall)The roller door
The roller shutter rolls up on approach beside the personnel door, with the forklift carrying a pallet, the bar stock rack and the scrap skip by the entrance. The high bay fittings light the hall from the trusses.
Hall roller shutter door bay (Machine Shop and Factory Hall)
Use with an AI agent
Copy this prompt into your AI chat to rebuild the layout, then describe what to change.
Rebuild the "Machine shop and factory hall" demo scene from the Machine Shop and Factory Hall pack in my project. Layout (JSON, every placement with its CDN URL): https://3dassets.dev/api/v1/demos/machine-shop-and-factory-hall Pack manifest: https://3dassets.dev/api/v1/packs/machine-shop-and-factory-hall Demo page: https://3dassets.dev/demos/machine-shop-and-factory-hall - 201 placements of 48 models; units are metres, +Y up, rotation is yaw in degrees about +Y - Spawn at (0.6, 0, 8.6) facing 180 degrees; eye height 1.6 m - Licence: CC0 1.0 Universal (no attribution required) - Loading: three.js GLTFLoader, one load per distinct model, cloned per placement; no decoders required
Also available as JSON or Markdown, and via the MCP server.
Common questions
How do I use Machine shop and factory hall with my AI development tools?
How do I get started?
Which game engines and tools can I use Machine shop and factory hall with?
How do I import this scene into Unity, Godot, Unreal or Blender?
Can I use Machine shop and factory hall in a commercial game, and do I need to credit anyone?
Can I load it from the CDN instead of downloading it?
Is the demo itself a file I can download?
Can I change the scene, or add gameplay to it?
Models in this demo
Concrete floor tile, plain 6 m (Machine Shop and Factory Hall)
Six metre pale concrete floor tile with saw cut joints and no markings, on the same ports as the marked tile so the two mix across a shop floor.
Concrete floor tile with walkway lines, 6 m (Machine Shop and Factory Hall)
Six metre pale concrete floor tile with saw cut joints and a yellow pedestrian walkway marked across it, ported on all four edges so a shop floor tiles out from it.
Hall wall bay with high windows (Machine Shop and Factory Hall)
Cladding bay with a 1.8 m glazed band under the eaves: charcoal mullions, sill and head, a concrete plinth and the same 6 m ports as the plain bay.
Hall wall cladding bay, 6 m (Machine Shop and Factory Hall)
Ribbed steel cladding bay for a 6 m column grid: a 5.8 m panel with a concrete plinth and an eaves trim, stopping at the column's inner face so no two panels share a plane.
AnimatedHall personnel door bay (Machine Shop and Factory Hall)
Cladding bay with a 1.1 m by 2.25 m personnel door: a charcoal frame, a vision panel, a push bar and a leaf that swings out of the hall.
AnimatedHall roller shutter door bay (Machine Shop and Factory Hall)
Cladding bay with a 4.2 m by 4.3 m shutter opening: charcoal jambs and lintel, a shutter hood and a slatted curtain that lifts clear of the opening.
Steel hall corner column, 6 m (Machine Shop and Factory Hall)
Corner post for the hall grid: a 6 m box section on a wide base plate with two gusseted cleats, one for each cladding run meeting at the corner.
Steel hall column, 6 m (Machine Shop and Factory Hall)
Universal column section 6 m tall on a bolted base plate, with a yellow impact band and a cap plate for the roof truss. Stands in the 200 mm joint between two cladding bays.
Hall roof truss bay, 6 m (Machine Shop and Factory Hall)
Lattice roof truss spanning one 6 m bay: paired chord angles with a zigzag web and purlin seats, ported at each end so trusses run the length of the hall.
Hall roof cladding bay, 6 m (Machine Shop and Factory Hall)
Ribbed roof deck for one 6 m by 6 m bay, ported on all four edges so a roof tiles across the hall in either direction.
Hall ridge skylight bay, 6 m (Machine Shop and Factory Hall)
Roof bay with a raised glazed rooflight on charcoal upstands, tiling on the same 6 m ports as the plain roof deck and lighting the shop floor below.
Mezzanine floor bay with handrail, 6 m (Machine Shop and Factory Hall)
Six metre mezzanine bay 3 m deep with its deck 3 m above the floor: four legs, an edge beam, a yellow handrail with a mid rail and a toe board, ported so bays run together.
Mezzanine access stair, 3 m rise (Machine Shop and Factory Hall)
Straight steel stair climbing 3 m over a 3.6 m run: charcoal treads between two stringers, yellow handrails on both sides and a top landing plate. The bottom step is toward +Z.
Gantry crane runway rail, 6 m (Machine Shop and Factory Hall)
Six metre runway beam with a bright rail on its top flange, ported at each end so a runway runs the length of the hall at 4 m.
AnimatedOverhead gantry crane bridge with trolley (Machine Shop and Factory Hall)
Single girder overhead crane spanning 17.2 m: end trucks that sit on the runway rails, a yellow walkway rail along the girder and a trolley with a hook block that traverses the span.
High bay light fitting (Machine Shop and Factory Hall)
Industrial high bay pendant: a cast aluminium reflector with a cream diffuser on a 0.85 m drop rod and a hanging hook. The origin is under the lamp, so place it at the fitting's height.
AnimatedEngine lathe with 2.4 m bed (Machine Shop and Factory Hall)
Centre lathe on twin enamelled pedestals: a chamfered bed on bright vee ways, a three jaw chuck with modelled jaws turning a shaft, a threaded lead screw and feed rod, a saddle with apron handwheels and a four way tool post, and a tailstock with its own handwheel.
AnimatedBench lathe on a cabinet stand (Machine Shop and Factory Hall)
Small screw cutting lathe on an enamelled cabinet stand: a 1.15 m bed on bright ways, a chuck holding short bar, a compound slide with a tool post, a hand tailstock and a threaded lead screw along the front.
Steel chip tray (Machine Shop and Factory Hall)
Shallow pressed steel tray 0.8 m by 0.5 m with folded sides and a load of swarf, sliding under a machine to catch chips.
Pile of steel swarf (Machine Shop and Factory Hall)
Loose heap of bright steel turnings about 0.9 m across and 0.3 m high, for dressing the floor beside a lathe or under a chip conveyor.
Open scrap skip (Machine Shop and Factory Hall)
Two and a half metre open steel skip with sloped ends, lifting lugs and a load of offcuts and swarf, for the metal that leaves the shop.
AnimatedMobile tool cabinet with drawers (Machine Shop and Factory Hall)
Blue roller cabinet on castors with a charcoal worktop and five drawers, 0.9 m wide, the top drawer opening on its runners to show the tray behind the front.
Coolant mixing tank with pump (Machine Shop and Factory Hall)
Wheeled coolant tank in blue with a charcoal pump head, a delivery hose coiled on the body and a sight strip, for topping up the machines.
Yellow safety bollard (Machine Shop and Factory Hall)
Floor bolted machine guard bollard 0.9 m tall in safety yellow with charcoal impact bands and a bolted base plate.
AnimatedVertical milling machine (Machine Shop and Factory Hall)
Turret mill 2.5 m tall: a cast column with an overarm ram, a head hanging clear of the column with a quill, spindle and cutter, a knee and saddle on bright ways, and a slotted table that traverses on its own handwheel.
AnimatedPillar drill press, floor standing (Machine Shop and Factory Hall)
Floor standing drill press: a ribbed cast base, a bright column, an adjustable table on a collar, a belt cover with a speed chart plate, a three spoke feed handle, and a quill that feeds down carrying the chuck and drill with it.
AnimatedSurface grinder with magnetic chuck (Machine Shop and Factory Hall)
Enamelled surface grinder: a chamfered base and column on bright ways, a wheel head with a guarded grinding wheel and a coolant nozzle, and a saddle table carrying a magnetic chuck that traverses under the wheel on its own handwheel.
Two shelf workshop trolley (Machine Shop and Factory Hall)
Wheeled steel trolley 0.9 m long with two charcoal shelves, a push handle and four castors, carrying a tray of finished parts.
Empty timber pallet (Machine Shop and Factory Hall)
Standard 1.2 m by 1.0 m timber pallet with three bearers and five deck boards, for stacking, loading or leaning against the racking.
AnimatedPress brake for sheet metal (Machine Shop and Factory Hall)
Two metre press brake: enamelled side housings, a cast bed carrying a vee die, a back gauge on screws, a yellow finger guard, a foot pedal and a ram with a bright punch that comes down on the die.
AnimatedHydraulic workshop press, H frame (Machine Shop and Factory Hall)
Twenty tonne H frame press: enamelled uprights on a bolted base, a top beam carrying the cylinder, a cast bolster on pins, a hand pump with a gauge and a lever, and a ram with a charcoal platen that travels down onto the work.
AnimatedCNC machining centre with sliding door (Machine Shop and Factory Hall)
Enclosed three axis machining centre: a chamfered base, a light grey guarding enclosure with a glazed sliding door on a bottom track, a swarf conveyor, a three colour stack light and a control pendant with a keyboard on a swing arm.
AnimatedParts washing cabinet with lift lid (Machine Shop and Factory Hall)
Solvent parts washer: an enamelled cabinet on rubber feet with a drum shelf below, a cast basin with a drain and a flexible nozzle on a gooseneck, a brush on the rim and a lid that lifts on its back edge.
AnimatedPiston air compressor with receiver tank (Machine Shop and Factory Hall)
Belt driven compressor on a horizontal receiver: dished tank ends on saddle feet, a sage enamel motor and finned twin cylinder pump, a yellow belt guard, two gauges, a pressure switch and a flywheel that spins.
AnimatedPowder coating oven with hinged door (Machine Shop and Factory Hall)
Batch curing oven: a light grey insulated cabinet 2.1 m tall with charcoal corner trim, a burner box and flue on the roof, a controller with a cream setpoint display and knobs, and a full height door that swings open on hinges.
Steel stillage cage (Machine Shop and Factory Hall)
Stackable mesh stillage 1.2 m by 0.8 m holding castings, with blue corner posts, a charcoal base and a half drop front.
AnimatedWorkbench with engineer's vice (Machine Shop and Factory Hall)
Two metre workbench: a timber top on a charcoal frame with a lower shelf, a cast engineer's vice at one end whose moving jaw opens, and hand tools laid on the top.
Parts bin shelving with plastic bins (Machine Shop and Factory Hall)
Blue shelving 1.2 m wide and 1.9 m tall carrying four rows of open fronted cream and blue picking bins, with a written card on the end frame.
AnimatedHorizontal metal cutting bandsaw (Machine Shop and Factory Hall)
Bandsaw for cutting bar stock: an enamelled base cabinet with a coolant tray, a screw vice with a handwheel, a bar stop, and a saw arm that lifts about the drive wheel's own axis so the wheel keeps its place whether the arm is down or raised.
Cantilever bar stock rack (Machine Shop and Factory Hall)
Vertical cantilever rack 2.4 m tall holding long round, square and angle bar on four levels of blue arms, with a yellow foot bar and a load notice.
Pallet of steel bar stock (Machine Shop and Factory Hall)
Standard timber pallet loaded with a bundle of bright round and square bar banded together, 1.2 m by 1.0 m and ready for the racking or the forks.
Oil drum on a tipping stand with a tap (Machine Shop and Factory Hall)
Two hundred litre blue drum lying in a charcoal cradle stand with a brass coloured tap and a drip tray beneath, for cutting oil at the machines.
Welding table with clamps (Machine Shop and Factory Hall)
Heavy welding bench: a charcoal steel top with a fixturing hole grid on square legs, three toggle clamps, an earth clamp on its lead, a lower shelf of offcuts and levelling feet.
MIG welder on a bottle cart (Machine Shop and Factory Hall)
Wheeled welding cart: an enamelled MIG set with a cream label panel, knobs and a wire spool door, a shielding gas bottle chained upright with its regulator, a coiled torch and earth lead, and a tray of consumables underneath.
Welding screen on castors (Machine Shop and Factory Hall)
Three panel welding screen on a castored frame: a charcoal tube frame with red curtain panels hung on rings, standing 1.9 m tall and shielding a welding bay from the shop floor.
Pallet racking bay, two levels (Machine Shop and Factory Hall)
Adjustable pallet racking 2.7 m wide and 3.6 m tall: blue uprights with bracing, two levels of yellow load beams and timber deck boards ready for pallets.
Pallet of stacked cartons (Machine Shop and Factory Hall)
Timber pallet stacked with six cream cartons under a charcoal strapping band, 1.2 m by 1.0 m by 1.1 m tall.
AnimatedCounterbalance forklift truck (Machine Shop and Factory Hall)
Three tonne counterbalance forklift in safety yellow: a charcoal counterweight, an overhead guard, a seat and steering wheel, a two stage mast, and forks that lift while the wheels roll.
