About

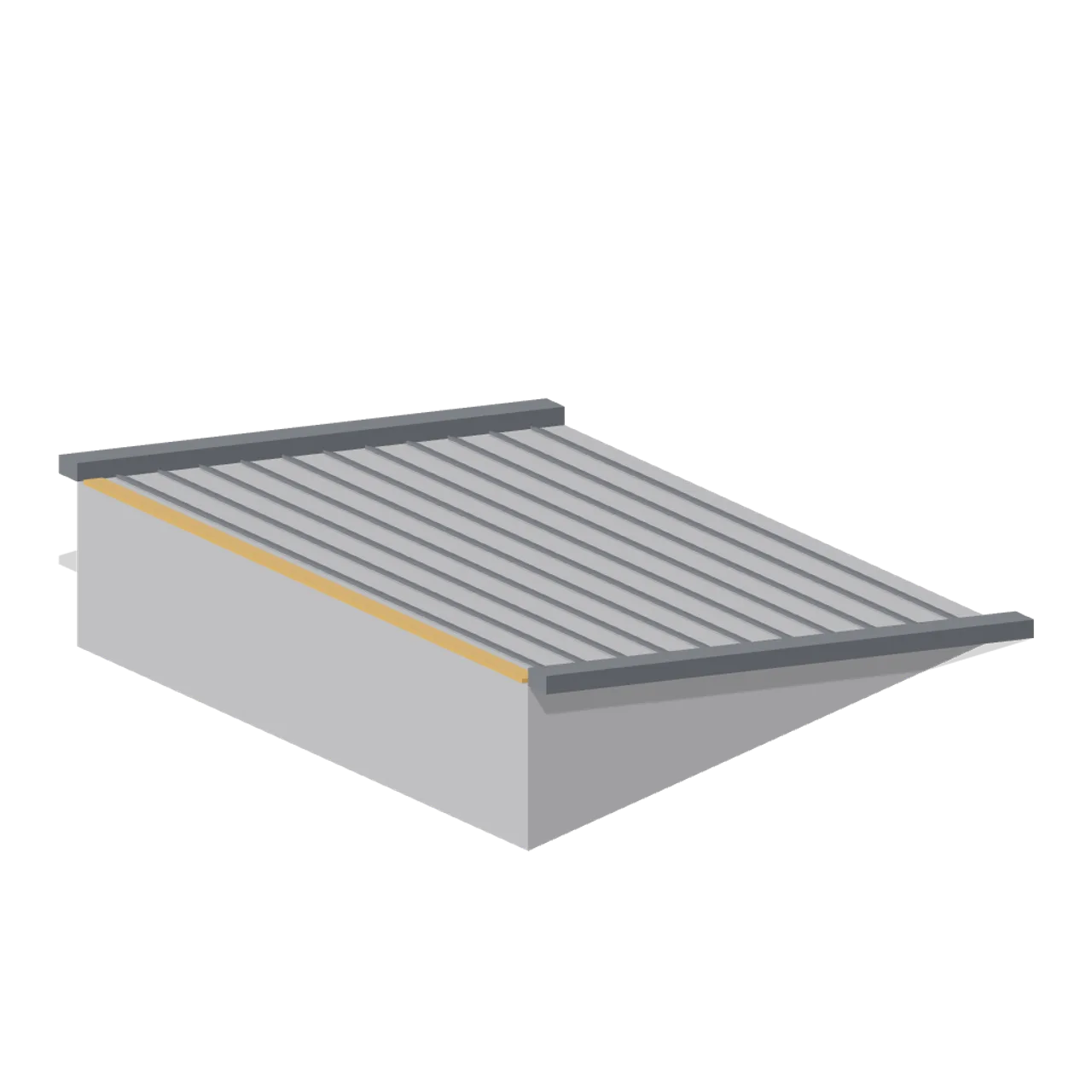

A 4 m by 4 m floor plate sloped at 15 degrees, rising 1.07 m across the cell, with raised side kerbs. For garage ramps, drainage falls and stepped terrain blockouts. Dimensions 4.00 x 1.19 x 4.00 m (X x Y x Z). Origin at the cell centre on the low edge datum; the deck climbs toward +Z. Metres, +Y up, +Z front, ground contact at y=0. Foot meets a deck edge at y=0; the head meets a deck edge 1.07 m higher. Connectors: base (deck-edge), top (deck-edge). Neutral greybox palette for prototyping before art exists. Static geometry; no skinned rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Greybox sloped floor 15 degrees (Modular Greybox Architecture Kit)” asset in my project. Model: https://cdn.3dassets.dev/assets/22844/v1/model.glb Asset page: https://3dassets.dev/assets/modular-greybox-architecture-kit-floor-slope-15-f7418edf Description: A 4 m by 4 m floor plate sloped at 15 degrees, rising 1.07 m across the cell, with raised side kerbs. For garage ramps, drainage falls and stepped terrain blockouts. - Dimensions (X × Y × Z): 4 × 1.192 × 4 metres - Triangles: 176 - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/22844/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Common questions
How do I use this model with my AI development tools?
How do I get started?
Which game engines and tools can I use this model with?
How do I import this model into Unity, Godot, Unreal or Blender?
Can I use this model in a commercial game, and do I need to credit anyone?
Can I load it from the CDN instead of downloading it?
Do I need Draco, Meshopt or KTX2 to load it?
Greybox sloped floor 15 degrees (Modular Greybox Architecture Kit)
A 4 m by 4 m floor plate sloped at 15 degrees, rising 1.07 m across the cell, with raised side kerbs. For garage ramps, drainage falls and stepped terrain blockouts.
