About

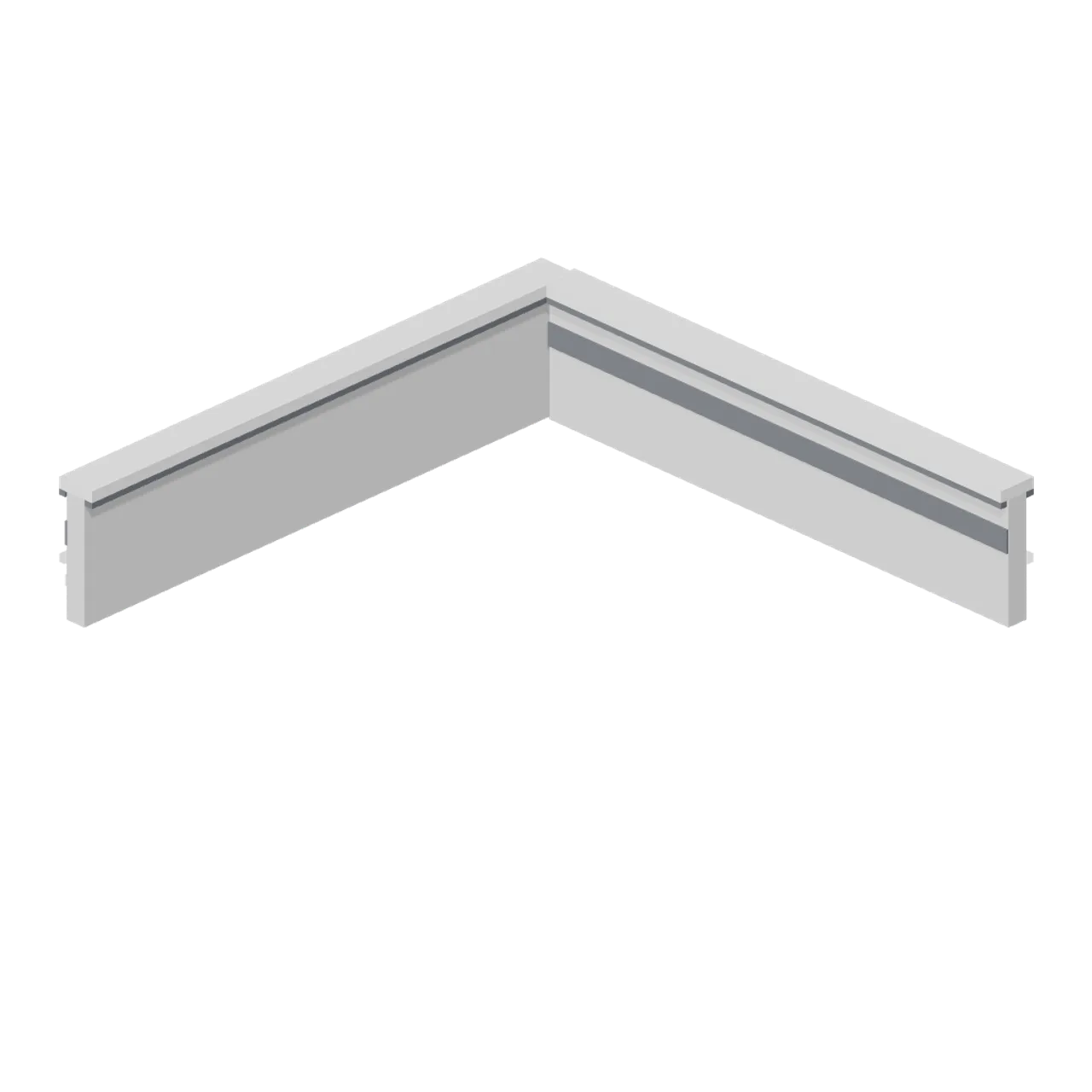

A full-cell parapet corner: two 4 m legs on the west and south edges of one cell with the coping mitred through the angle, so a roof edge turns without a gap. Dimensions 4.14 x 0.94 x 4.14 m (X x Y x Z). Origin at the cell centre on the roof deck; the legs sit on the x=-2 and z=-2 grid lines. Metres, +Y up, +Z front, ground contact at y=0. The north port continues the west leg and the east port continues the south leg; both accept a 4 m parapet. Connectors: north (run-end), east (run-end). Neutral greybox palette for prototyping before art exists. Static geometry; no skinned rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Greybox parapet corner cell (Modular Greybox Architecture Kit)” asset in my project. Model: https://cdn.3dassets.dev/assets/22897/v1/model.glb Asset page: https://3dassets.dev/assets/modular-greybox-architecture-kit-parapet-corner-bba0b04e Description: A full-cell parapet corner: two 4 m legs on the west and south edges of one cell with the coping mitred through the angle, so a roof edge turns without a gap. - Dimensions (X × Y × Z): 4.14 × 0.94 × 4.141 metres - Triangles: 120 - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/22897/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Common questions
How do I use this model with my AI development tools?
How do I get started?
Which game engines and tools can I use this model with?
How do I import this model into Unity, Godot, Unreal or Blender?
Can I use this model in a commercial game, and do I need to credit anyone?
Can I load it from the CDN instead of downloading it?
Do I need Draco, Meshopt or KTX2 to load it?
Greybox parapet corner cell (Modular Greybox Architecture Kit)
A full-cell parapet corner: two 4 m legs on the west and south edges of one cell with the coping mitred through the angle, so a roof edge turns without a gap.
