About

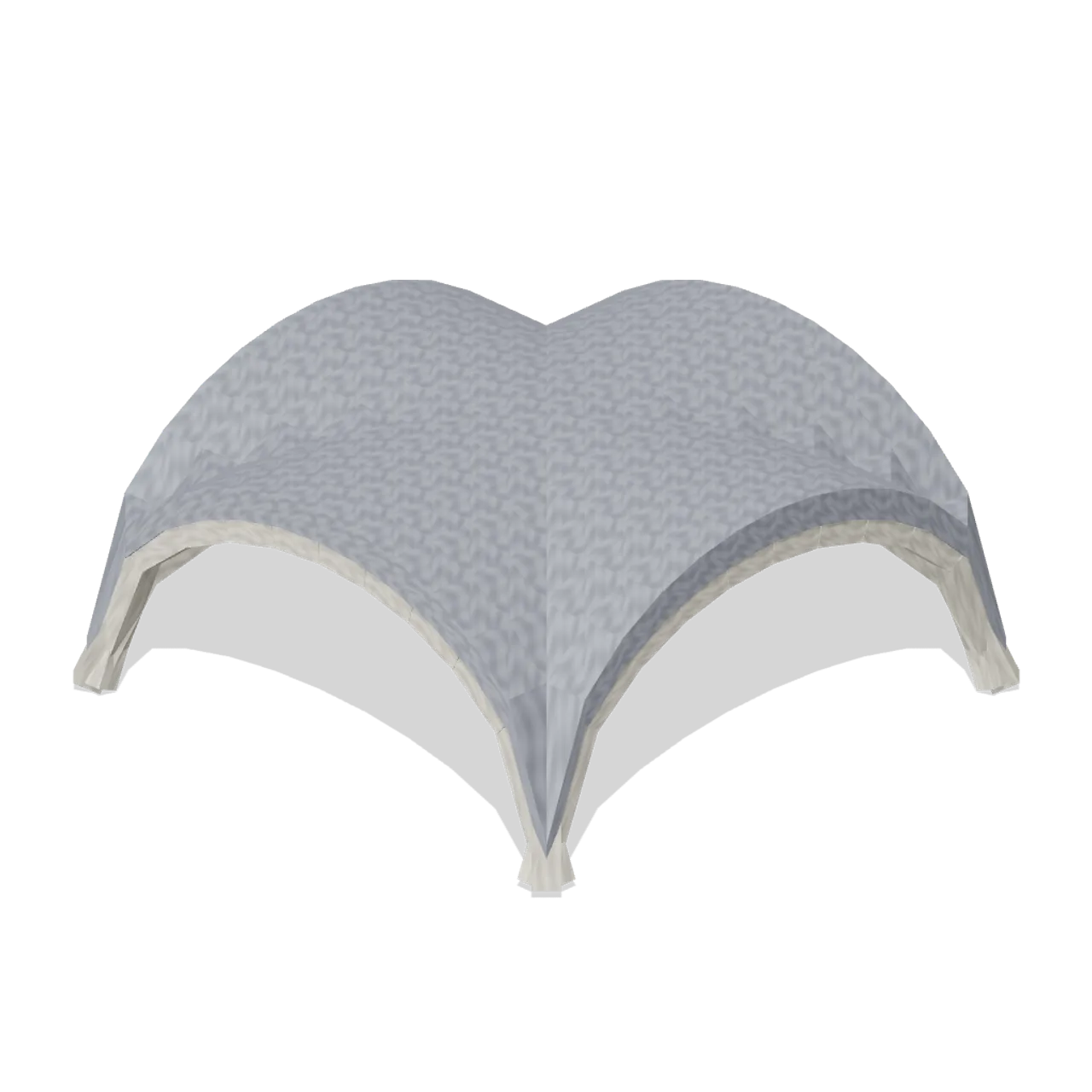

Quadripartite rib vault ceiling tile for a 4 by 4 m bay: pointed groin surface rising 1.6 m from the springing at y=0, diagonal and wall ribs and a gilt boss. Place at the springing height. Dimensions 4.24 x 1.95 x 4.24 m (X x Y x Z). Metre units, +Y up, +Z front; rests on y=0 with the origin on the 4 m grid centre. Nocturne hand-painted palette: slate, bone, crimson, tarnished gold and black iron. Static geometry; no rig, animation, collision or navigation data.

Use with an AI agent

Copy this prompt into your AI chat, then describe what you want to build with the asset.

Use the “Rib Vault Tile (Vampire Crypt and Gothic Cathedral)” asset in my project.

Model: https://cdn.3dassets.dev/assets/13001/v1/model.glb
Asset page: https://3dassets.dev/assets/vampire-crypt-and-gothic-cathedral-rib-vault-tile-b728a57e
Description: Quadripartite rib vault ceiling tile for a 4 by 4 m bay: pointed groin surface rising 1.6 m from the springing at y=0, diagonal and wall ribs and a gilt boss. Place at the springing height.

- Dimensions (X × Y × Z): 4.243 × 1.947 × 4.243 metres
- Triangles: 1.6k
- Animations: none
- Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/)
- Loading: Three.js GLTFLoader; no additional decoders required.

Also available as JSON, Markdown, or via the MCP server.

Import manually

Choose your framework, then copy the code into your project to load the asset.

import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'

const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/13001/v1/model.glb', (gltf) => {
  scene.add(gltf.scene)
})

Rib Vault Tile (Vampire Crypt and Gothic Cathedral)

Quadripartite rib vault ceiling tile for a 4 by 4 m bay: pointed groin surface rising 1.6 m from the springing at y=0, diagonal and wall ribs and a gilt boss. Place at the springing height.

Download asset · 96.7 KB
