About

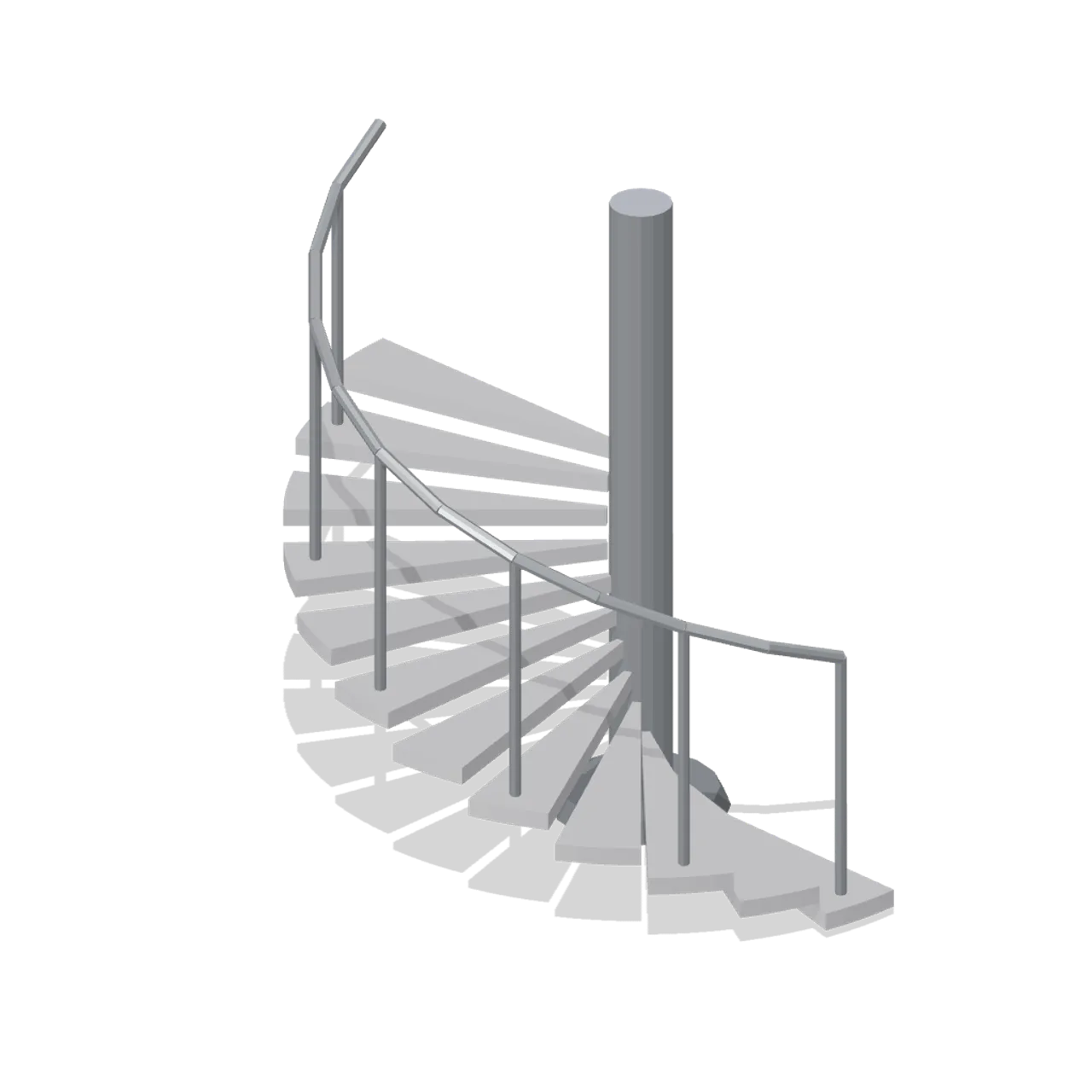

A stackable spiral stair segment: twelve wedge winders sweeping 180 degrees around a 0.24 m column, climbing 1.5 m, with balusters and a helical outer handrail. Dimensions 2.70 x 2.55 x 1.69 m (X x Y x Z). Origin on the column axis at the lower deck datum; the first winder starts on the +X axis and the sweep runs toward +Z. Metres, +Y up, +Z front, ground contact at y=0. Stack segments 1.5 m apart, rotating each by 180 degrees, to build a continuous spiral through any storey height. Connectors: bottom (run-end), top (run-end). Neutral greybox palette for prototyping before art exists. Static geometry; no skinned rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Greybox spiral stair half-turn segment (Modular Greybox Architecture Kit)” asset in my project. Model: https://cdn.3dassets.dev/assets/22873/v1/model.glb Asset page: https://3dassets.dev/assets/modular-greybox-architecture-kit-stair-spiral-segment-aa7db880 Description: A stackable spiral stair segment: twelve wedge winders sweeping 180 degrees around a 0.24 m column, climbing 1.5 m, with balusters and a helical outer handrail. - Dimensions (X × Y × Z): 2.7 × 2.55 × 1.69 metres - Triangles: 1.1k - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/22873/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Common questions
How do I use this model with my AI development tools?
How do I get started?
Which game engines and tools can I use this model with?
How do I import this model into Unity, Godot, Unreal or Blender?
Can I use this model in a commercial game, and do I need to credit anyone?
Can I load it from the CDN instead of downloading it?
Do I need Draco, Meshopt or KTX2 to load it?
Greybox spiral stair half-turn segment (Modular Greybox Architecture Kit)
A stackable spiral stair segment: twelve wedge winders sweeping 180 degrees around a 0.24 m column, climbing 1.5 m, with balusters and a helical outer handrail.
