About

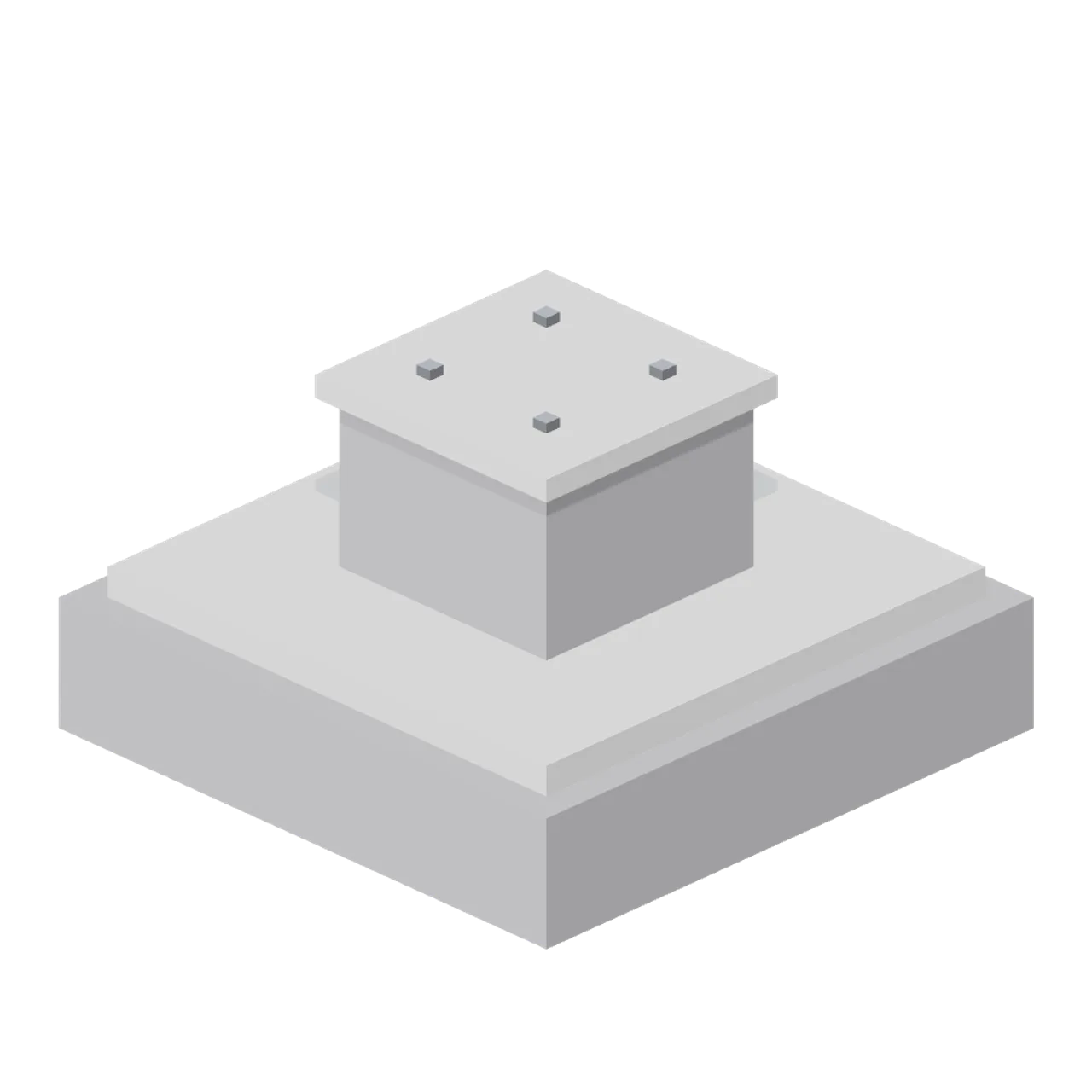

A 1.6 m square foundation pad with a chamfered upstand and a 0.6 m pedestal carrying four cast-in holding-down bolts, sized for the I-beam column. Dimensions 1.60 x 0.95 x 1.60 m (X x Y x Z). Origin at the pad centre on the ground; the pedestal top is at 0.92 m. Metres, +Y up, +Z front, ground contact at y=0. The top port receives the I-beam column bottom port so the column stands on the pedestal. Connectors: top (run-end). Neutral greybox palette for prototyping before art exists. Static geometry; no skinned rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Greybox foundation pad (Modular Greybox Architecture Kit)” asset in my project. Model: https://cdn.3dassets.dev/assets/16098/v1/model.glb Asset page: https://3dassets.dev/assets/modular-greybox-architecture-kit-foundation-pad-e8b41221 Description: A 1.6 m square foundation pad with a chamfered upstand and a 0.6 m pedestal carrying four cast-in holding-down bolts, sized for the I-beam column. - Dimensions (X × Y × Z): 1.6 × 0.946 × 1.6 metres - Triangles: 108 - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/16098/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Greybox foundation pad (Modular Greybox Architecture Kit)
A 1.6 m square foundation pad with a chamfered upstand and a 0.6 m pedestal carrying four cast-in holding-down bolts, sized for the I-beam column.
