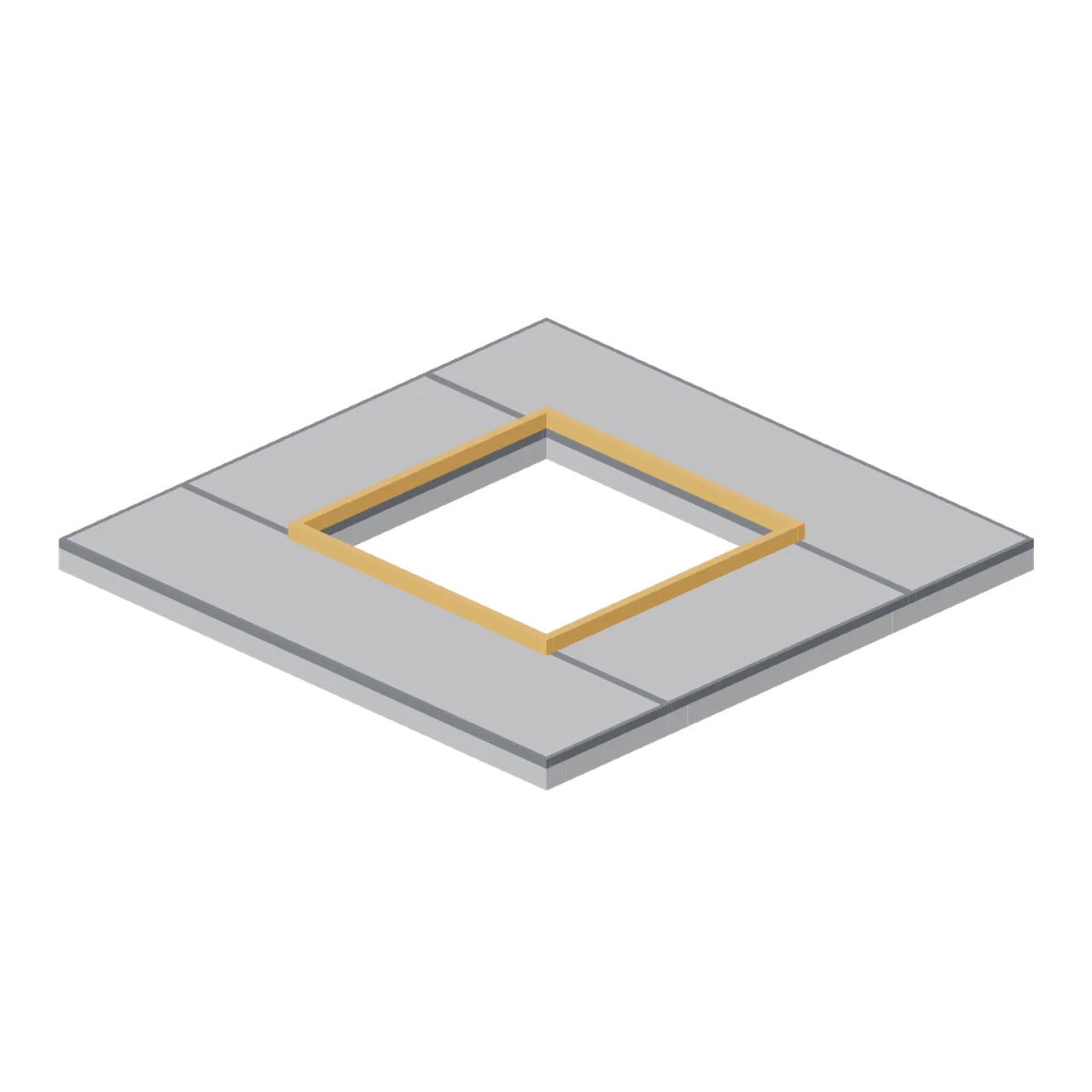

A 4 m floor tile with a 2 m square void and a 0.1 m safety kerb, used for stairwells, lift shafts and double-height voids. Dimensions 4.00 x 0.30 x 4.00 m (X x Y x Z). Origin at the cell centre; the void is centred on the origin. Metres, +Y up, +Z front, ground contact at y=0. Drops into any 4 m cell in place of a plain tile. The kerb stands 0.1 m proud of the deck. Connectors: floor-west (floor-edge), floor-east (floor-edge), floor-south (floor-edge), floor-north (floor-edge), deck-west (deck-edge), deck-east (deck-edge), deck-south (deck-edge), deck-north (deck-edge). Neutral greybox palette for prototyping before art exists. Static geometry; no skinned rig, collision or navigation data.

Use with an AI agent

Copy this prompt into your AI chat, then describe what you want to build with the asset.

Use the “Greybox floor tile with 2 m stairwell hole (Modular Greybox Architecture Kit)” asset in my project.

Model: https://cdn.3dassets.dev/assets/8184/v1/model.glb
Asset page: https://3dassets.dev/assets/modular-greybox-architecture-kit-floor-hole-square-cedd24b8
Description: A 4 m floor tile with a 2 m square void and a 0.1 m safety kerb, used for stairwells, lift shafts and double-height voids.

- Dimensions (X × Y × Z): 4 × 0.3 × 4 metres
- Triangles: 504
- Animations: none
- Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/)
- Loading: Three.js GLTFLoader; no additional decoders required.
