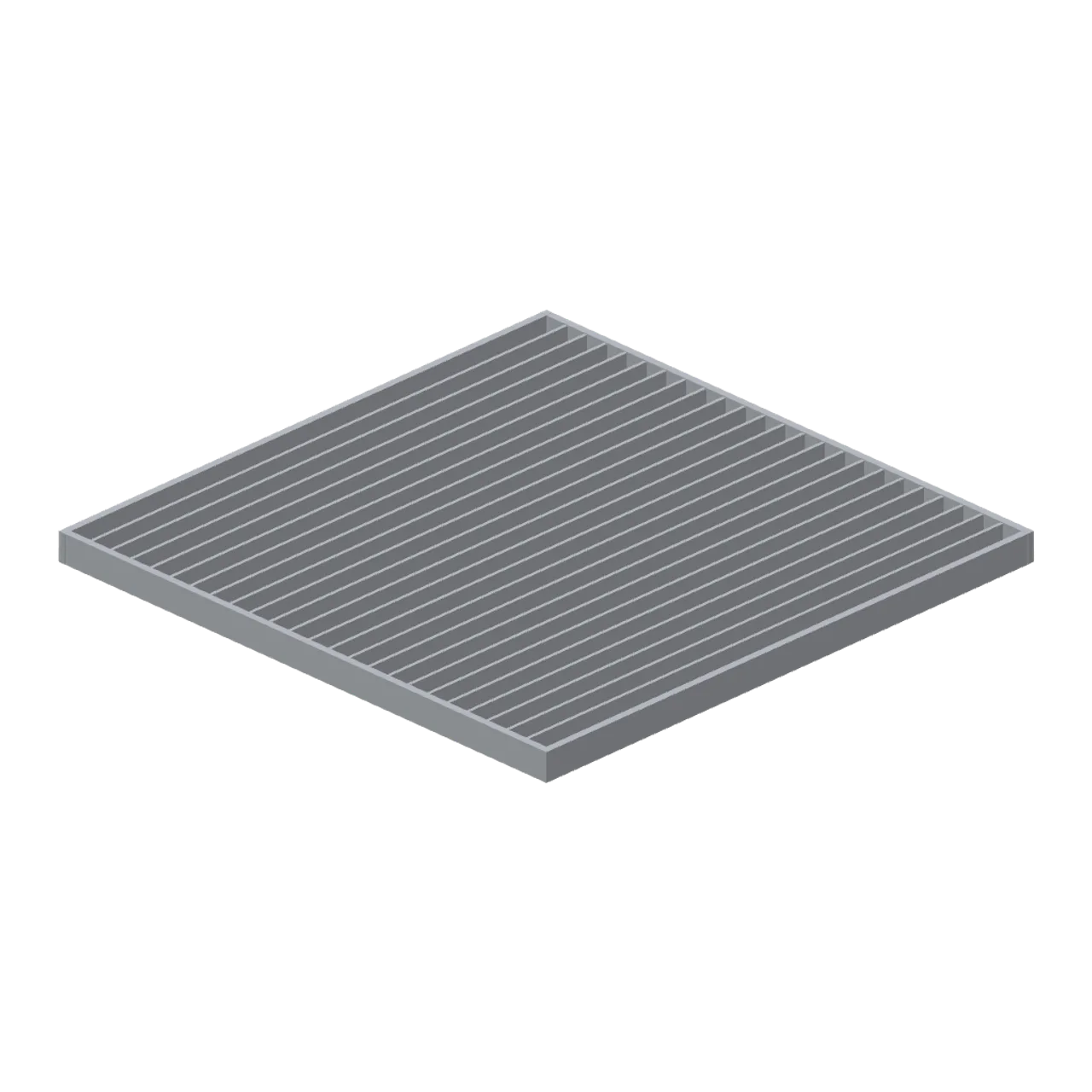

A 4 m open grating floor panel: steel edge frame with 24 bearer bars on a 0.16 m pitch, for plant decks, service voids and see-through walkway floors. Dimensions 4.00 x 0.20 x 4.00 m (X x Y x Z). Origin at the cell centre; the deck is the top of the frame at y=0.20. Metres, +Y up, +Z front, ground contact at y=0. Swaps one to one with a solid 4 m tile and keeps the same deck datum. Connectors: floor-west (floor-edge), floor-east (floor-edge), floor-south (floor-edge), floor-north (floor-edge), deck-west (deck-edge), deck-east (deck-edge), deck-south (deck-edge), deck-north (deck-edge). Neutral greybox palette for prototyping before art exists. Static geometry; no skinned rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Greybox open grating floor panel 4 m (Modular Greybox Architecture Kit)” asset in my project. Model: https://cdn.3dassets.dev/assets/8189/v1/model.glb Asset page: https://3dassets.dev/assets/modular-greybox-architecture-kit-floor-grate-panel-17dc75ed Description: A 4 m open grating floor panel: steel edge frame with 24 bearer bars on a 0.16 m pitch, for plant decks, service voids and see-through walkway floors. - Dimensions (X × Y × Z): 4 × 0.2 × 4 metres - Triangles: 324 - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/8189/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Greybox open grating floor panel 4 m (Modular Greybox Architecture Kit)
A 4 m open grating floor panel: steel edge frame with 24 bearer bars on a 0.16 m pitch, for plant decks, service voids and see-through walkway floors.
