About

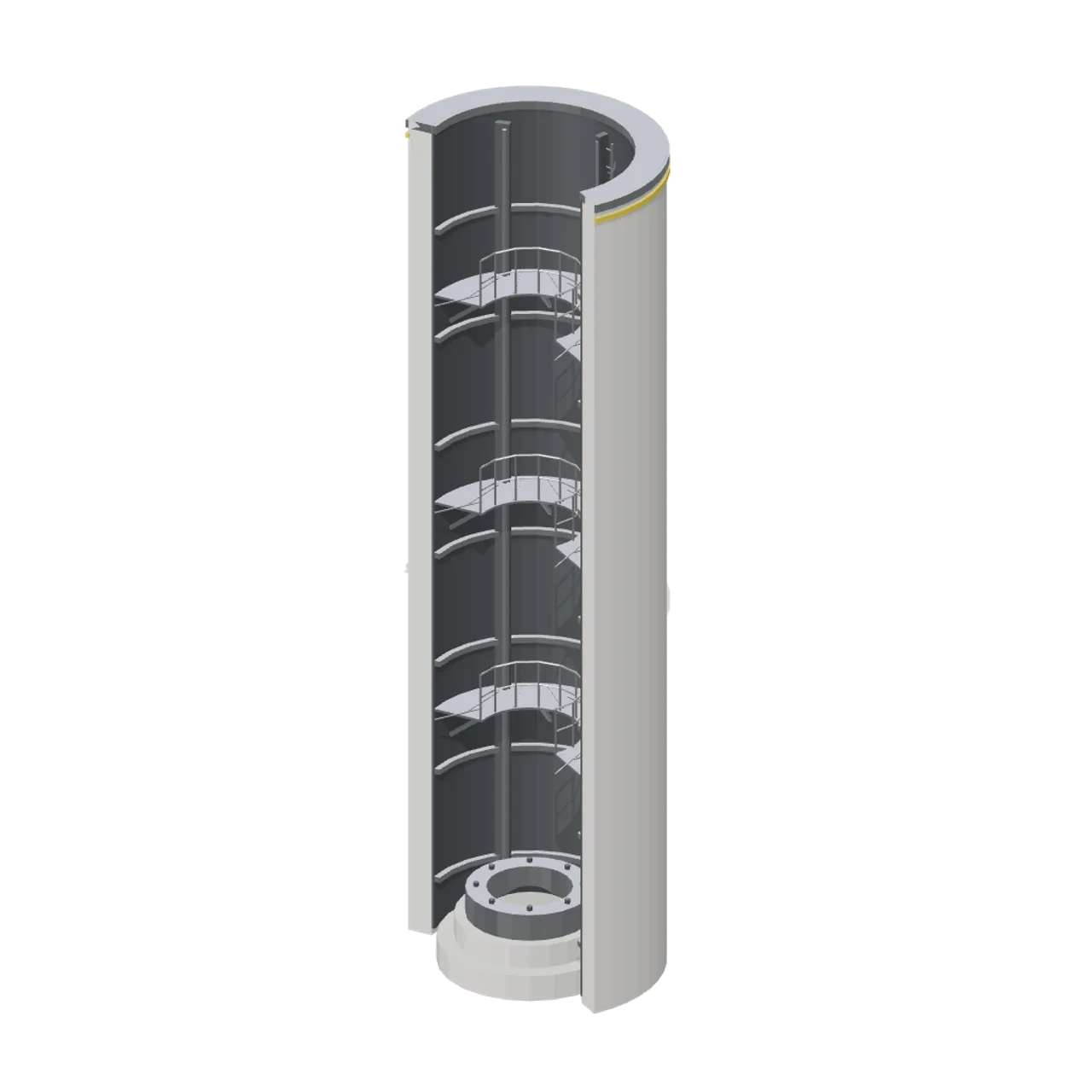

A cutaway section of a hardened launch tube: an 18 m concrete wall 0.52 m thick with a welded steel liner, stiffener rings, three grating work platforms with handrails, a caged ladder, cable raceways, a stepped launch mount and a hazard-banded muzzle seat. Bounding size 5.58 x 18.00 x 4.64 m (X x Y x Z). Metre units, +Y up, +Z forward, lowest geometry resting on y=0. Assembly ports: tube-top (silo-tube). The open side is a real sectioned shell, so the wall thickness, liner, thrust ring, flame deflector and platforms are all modelled. Displayed above ground for inspection; sink it to grade to place it below a headworks collar. Generic period hardware with no real designations, insignia or markings. Static geometry; no rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Launch tube cutaway section (Cold War Missile Silo and Command Bunker)” asset in my project. Model: https://cdn.3dassets.dev/assets/15648/v1/model.glb Asset page: https://3dassets.dev/assets/cold-war-missile-silo-and-command-bunker-launch-tube-c-0679194c Description: A cutaway section of a hardened launch tube: an 18 m concrete wall 0.52 m thick with a welded steel liner, stiffener rings, three grating work platforms with handrails, a caged ladder, cable raceways, a stepped launch mount and a hazard-banded muzzle seat. - Dimensions (X × Y × Z): 5.58 × 18.001 × 4.64 metres - Triangles: 6.9k - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/15648/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Common questions
How do I use this model with my AI development tools?
How do I get started?
Which game engines and tools can I use this model with?
How do I import this model into Unity, Godot, Unreal or Blender?
Can I use this model in a commercial game, and do I need to credit anyone?
Can I load it from the CDN instead of downloading it?
Do I need Draco, Meshopt or KTX2 to load it?
Launch tube cutaway section (Cold War Missile Silo and Command Bunker)
A cutaway section of a hardened launch tube: an 18 m concrete wall 0.52 m thick with a welded steel liner, stiffener rings, three grating work platforms with handrails, a caged ladder, cable raceways, a stepped launch mount and a hazard-banded muzzle seat.
