About

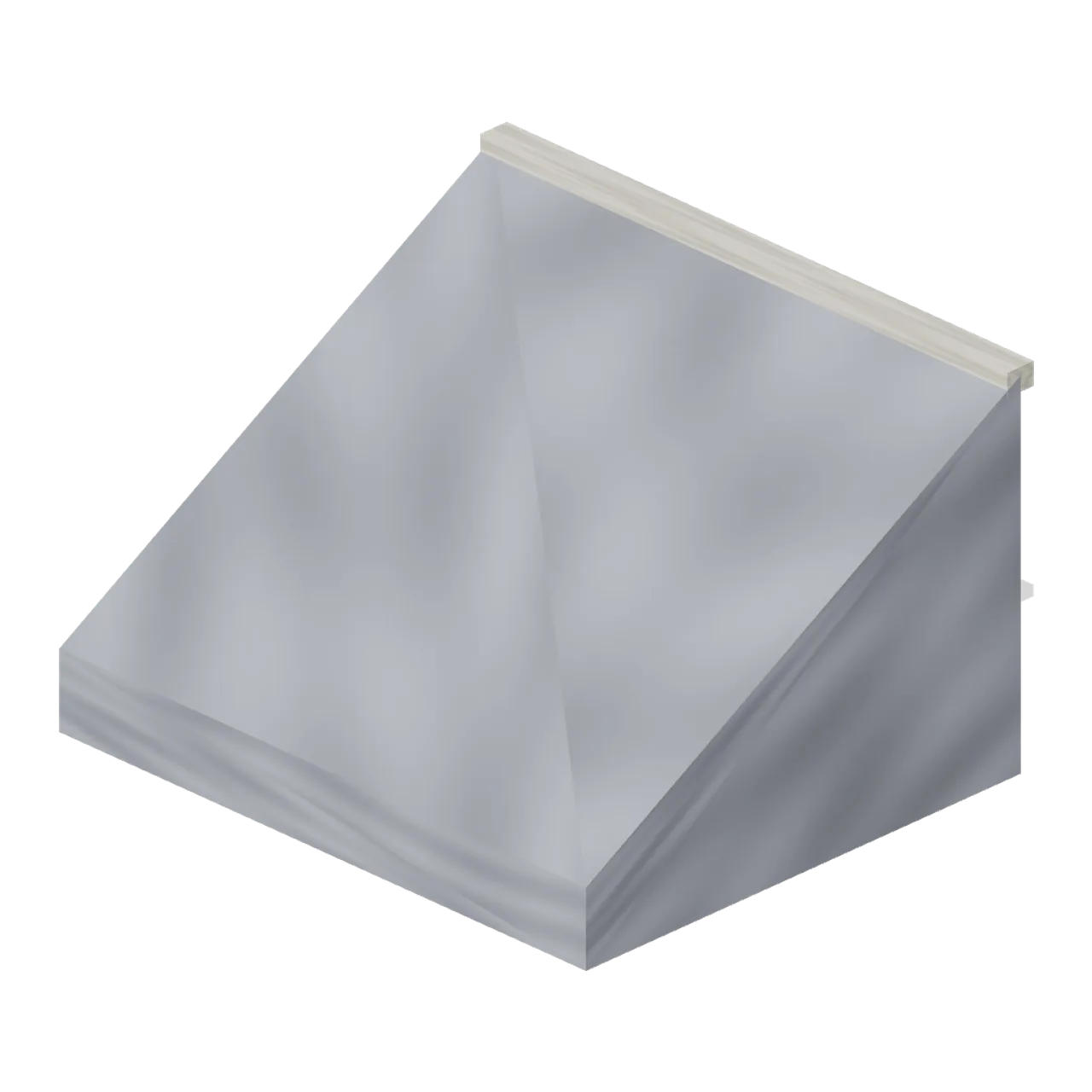

4 m lean-to aisle roof bay, 3.3 m deep, rising from 0.5 m at the eaves (+Z) to 2.4 m at the nave wall (z=0), with three rafters. Dimensions 4.00 x 2.45 x 3.40 m (X x Y x Z). Metre units, +Y up, +Z front; rests on y=0 with the origin on the 4 m grid centre. Nocturne hand-painted palette: slate, bone, crimson, tarnished gold and black iron. Connectors: west (nave-bay), east (nave-bay). Static geometry; no rig, animation, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Aisle Roof Bay (Vampire Crypt and Gothic Cathedral)” asset in my project. Model: https://cdn.3dassets.dev/assets/13015/v1/model.glb Asset page: https://3dassets.dev/assets/vampire-crypt-and-gothic-cathedral-aisle-roof-bay-1c818970 Description: 4 m lean-to aisle roof bay, 3.3 m deep, rising from 0.5 m at the eaves (+Z) to 2.4 m at the nave wall (z=0), with three rafters. - Dimensions (X × Y × Z): 4.001 × 2.45 × 3.4 metres - Triangles: 60 - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/13015/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Aisle Roof Bay (Vampire Crypt and Gothic Cathedral)
4 m lean-to aisle roof bay, 3.3 m deep, rising from 0.5 m at the eaves (+Z) to 2.4 m at the nave wall (z=0), with three rafters.
