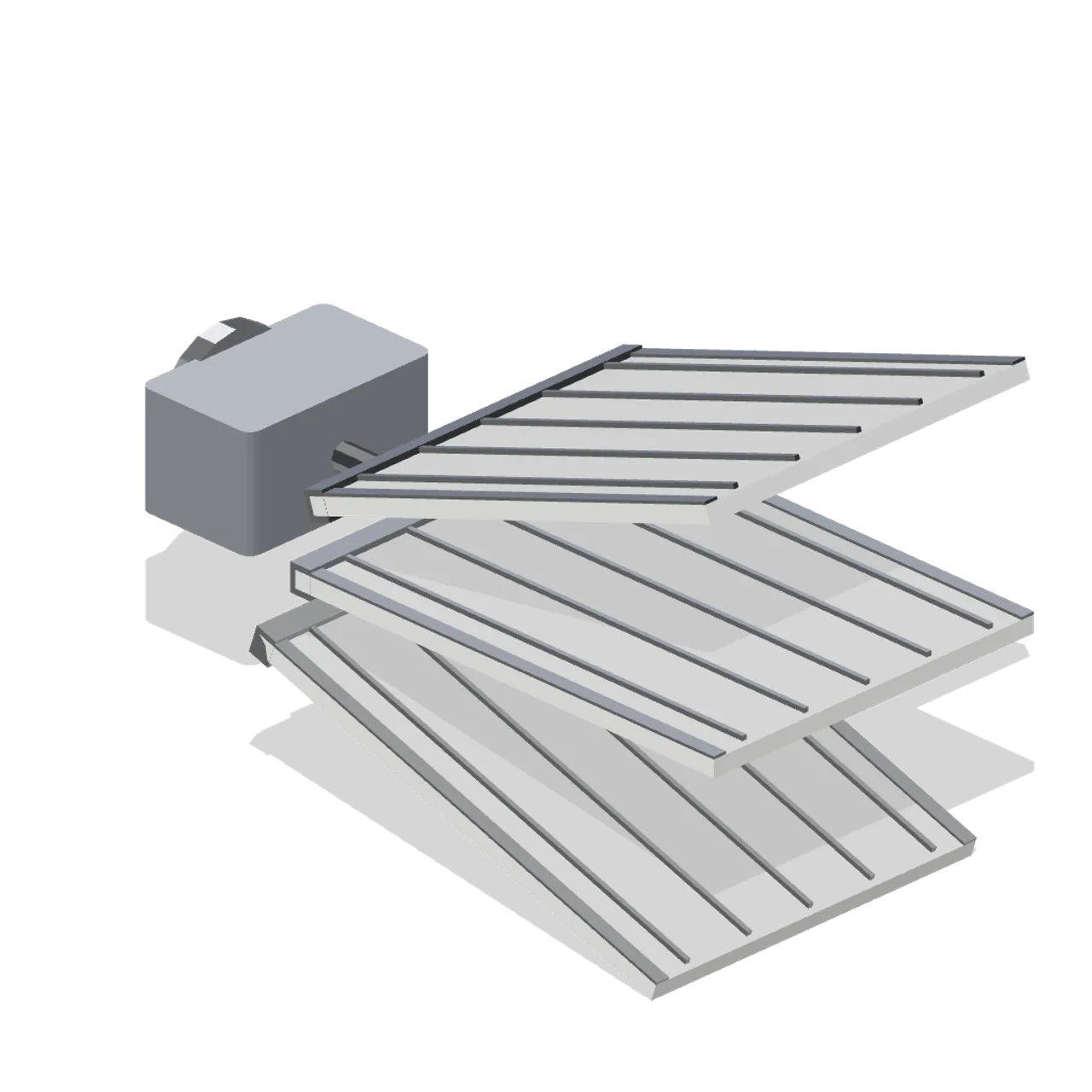

A deployed thermal radiator: a pump and rotary bracket on a truss port, a spine beam and three 3.4 by 2.6 m panels fanned on named hinge nodes with fluid line ribs. Bounding size 5.32 x 3.37 x 2.60 m (X x Y x Z). Metre units, +Y up, +Z forward, lowest geometry resting on y=0. Movable parts are separate named nodes with local pivots: radiator-panel-1, radiator-panel-2, radiator-panel-3. Assembly ports: truss-port (truss). Truss centreline sits 1.68 m above y=0. Each panel is a named node hinged at the beam root. Static geometry; no rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Deployed radiator panel array (Orbital Station and Docking Bays)” asset in my project. Model: https://cdn.3dassets.dev/assets/11289/v1/model.glb Asset page: https://3dassets.dev/assets/orbital-station-and-docking-bays-radiator-panel-array-9ce5970e Description: A deployed thermal radiator: a pump and rotary bracket on a truss port, a spine beam and three 3.4 by 2.6 m panels fanned on named hinge nodes with fluid line ribs. - Dimensions (X × Y × Z): 5.32 × 3.373 × 2.6 metres - Triangles: 632 - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/11289/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Deployed radiator panel array (Orbital Station and Docking Bays)
A deployed thermal radiator: a pump and rotary bracket on a truss port, a spine beam and three 3.4 by 2.6 m panels fanned on named hinge nodes with fluid line ribs.
