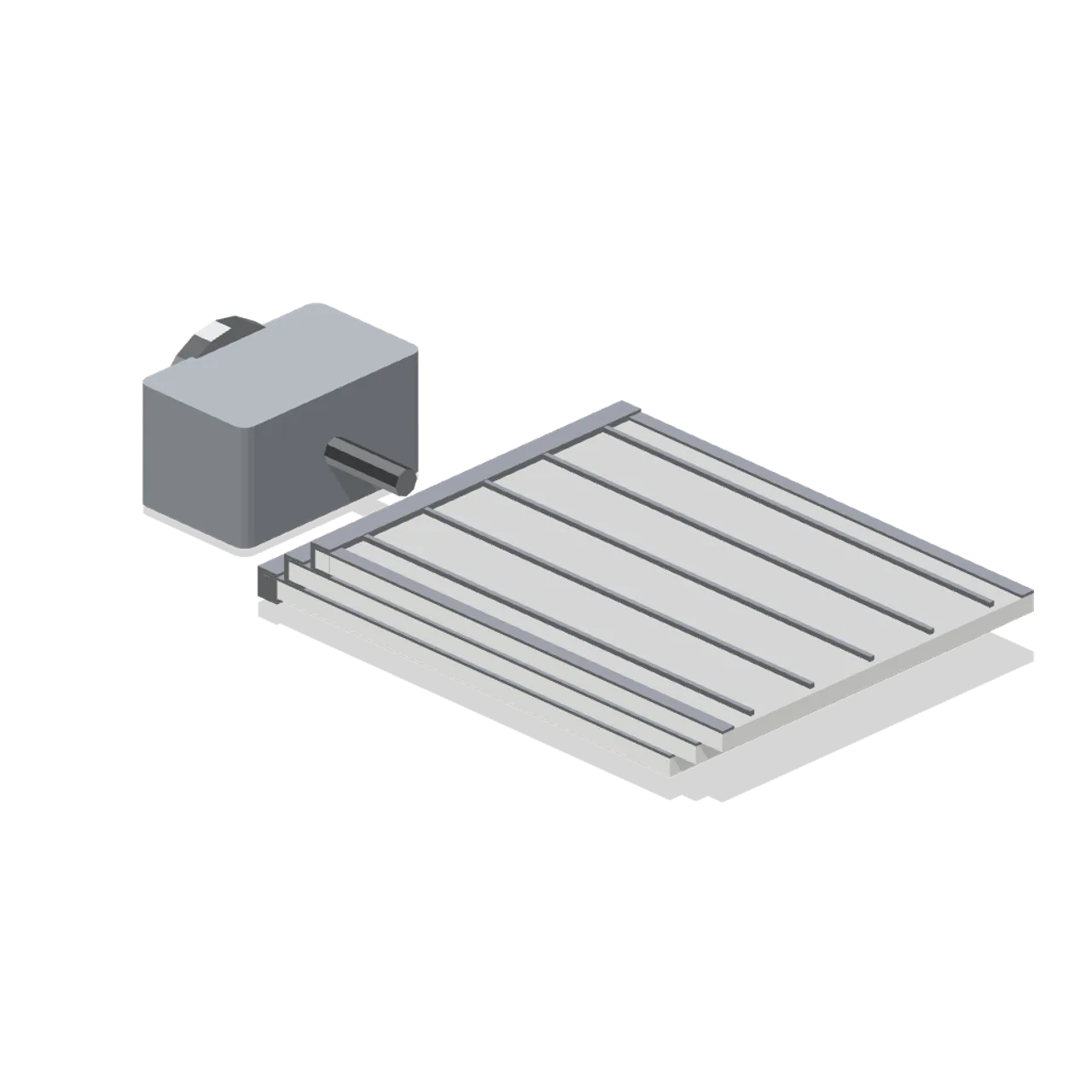

The radiator retracted for launch or safing, with the three panels folded into a parallel stack on their hinge nodes above the pump bracket. Bounding size 5.54 x 1.00 x 2.60 m (X x Y x Z). Metre units, +Y up, +Z forward, lowest geometry resting on y=0. Movable parts are separate named nodes with local pivots: radiator-panel-1, radiator-panel-2, radiator-panel-3. Assembly ports: truss-port (truss). Truss centreline sits 0.50 m above y=0. Each panel is a named node hinged at the beam root. Static geometry; no rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Stowed radiator panel array (Orbital Station and Docking Bays)” asset in my project. Model: https://cdn.3dassets.dev/assets/11291/v1/model.glb Asset page: https://3dassets.dev/assets/orbital-station-and-docking-bays-radiator-panel-array--25d44fe0 Description: The radiator retracted for launch or safing, with the three panels folded into a parallel stack on their hinge nodes above the pump bracket. - Dimensions (X × Y × Z): 5.54 × 1 × 2.6 metres - Triangles: 632 - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/11291/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Stowed radiator panel array (Orbital Station and Docking Bays)
The radiator retracted for launch or safing, with the three panels folded into a parallel stack on their hinge nodes above the pump bracket.
