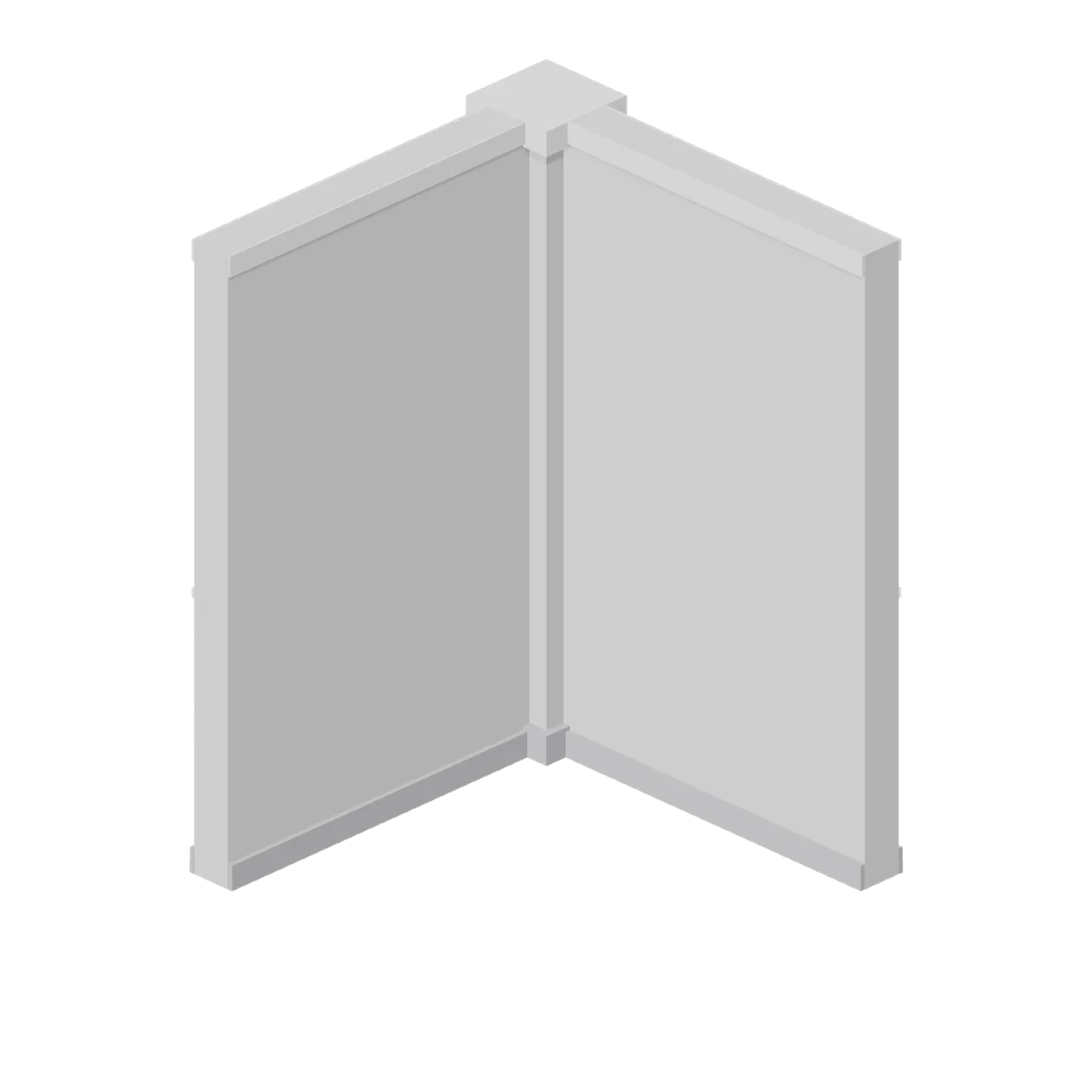

A convex external corner: a 0.4 m square corner pilaster with two 2 m wall stubs running out along +X and +Z, for building external angles without a mitre. Dimensions 2.24 x 3.00 x 2.24 m (X x Y x Z). Origin at the grid intersection under the corner pilaster. Metres, +Y up, +Z front, ground contact at y=0. Both stubs end on the 2 m sub-grid and accept a 2 m or 4 m wall. Connectors: east (wall-end), north (wall-end). Neutral greybox palette for prototyping before art exists. Static geometry; no skinned rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Greybox wall outer corner pilaster (Modular Greybox Architecture Kit)” asset in my project. Model: https://cdn.3dassets.dev/assets/16042/v1/model.glb Asset page: https://3dassets.dev/assets/modular-greybox-architecture-kit-wall-corner-outer-451ac387 Description: A convex external corner: a 0.4 m square corner pilaster with two 2 m wall stubs running out along +X and +Z, for building external angles without a mitre. - Dimensions (X × Y × Z): 2.24 × 3.001 × 2.24 metres - Triangles: 156 - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/16042/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Greybox wall outer corner pilaster (Modular Greybox Architecture Kit)
A convex external corner: a 0.4 m square corner pilaster with two 2 m wall stubs running out along +X and +Z, for building external angles without a mitre.
