About

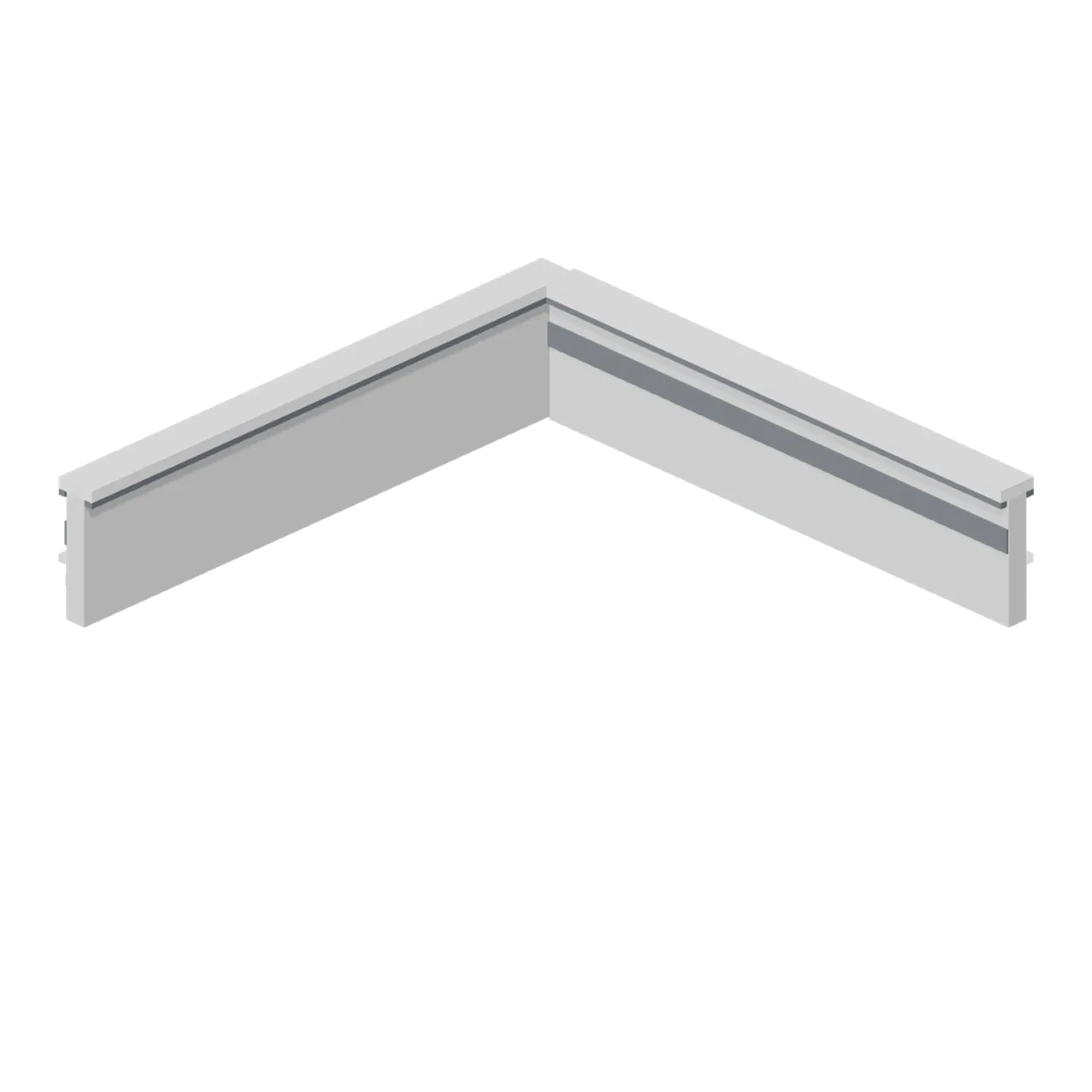

A full-cell parapet corner: two 4 m legs on the west and south edges of one cell with the coping mitred through the angle, so a roof edge turns without a gap. Dimensions 4.14 x 0.94 x 4.14 m (X x Y x Z). Origin at the cell centre on the roof deck; the legs sit on the x=-2 and z=-2 grid lines. Metres, +Y up, +Z front, ground contact at y=0. The north port continues the west leg and the east port continues the south leg; both accept a 4 m parapet. Connectors: north (run-end), east (run-end). Neutral greybox palette for prototyping before art exists. Static geometry; no skinned rig, collision or navigation data.

Use with an AI agent

Copy this prompt into your AI chat, then describe what you want to build with the asset.

Use the “Greybox parapet corner cell (Modular Greybox Architecture Kit)” asset in my project.

Model: https://cdn.3dassets.dev/assets/8244/v1/model.glb
Asset page: https://3dassets.dev/assets/modular-greybox-architecture-kit-parapet-corner-c318e73e
Description: A full-cell parapet corner: two 4 m legs on the west and south edges of one cell with the coping mitred through the angle, so a roof edge turns without a gap.

- Dimensions (X × Y × Z): 4.14 × 0.94 × 4.14 metres
- Triangles: 120
- Animations: none
- Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/)
- Loading: Three.js GLTFLoader; no additional decoders required.

Also available as JSON, Markdown, or via the MCP server.

Import manually

Choose your framework, then copy the code into your project to load the asset.

import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'

const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/8244/v1/model.glb', (gltf) => {
  scene.add(gltf.scene)
})

Greybox parapet corner cell (Modular Greybox Architecture Kit)

A full-cell parapet corner: two 4 m legs on the west and south edges of one cell with the coping mitred through the angle, so a roof edge turns without a gap.

Download asset · 7.5 KB
