About

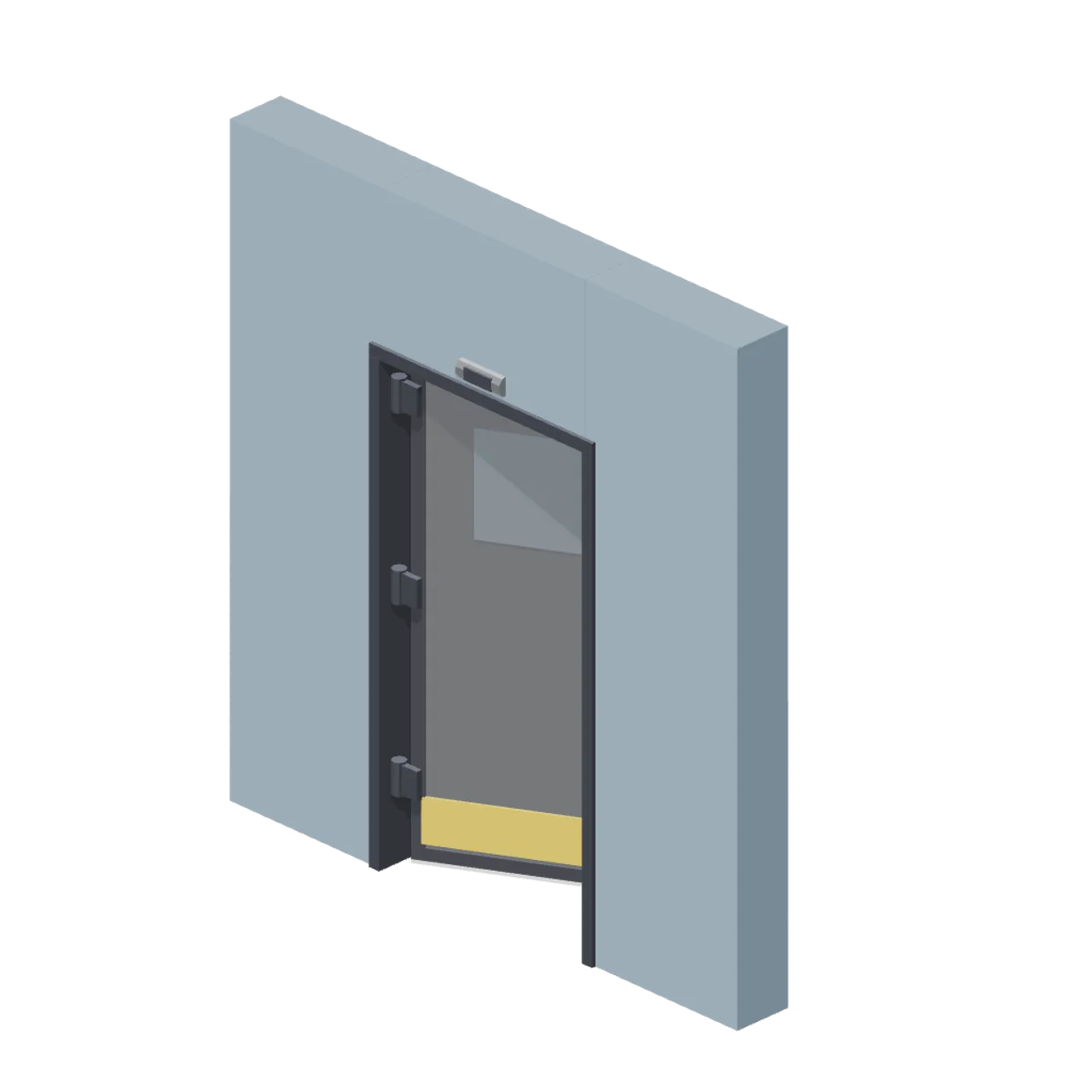

A 1.2 m by 2.4 m opening in a 3 m wide, 3.2 m tall wall bay. The leaf is a framed steel panel with iron stiles and rails, a glazed vision panel, an amber kick plate and lever handles on both faces. Overall size 3 x 3.2 x 0.36 m in metres, +Y up, +Z forward, resting on y=0. Node leaf pivots on the hinge line at x=-0.56, z=0. Clips: open swings the leaf 95 degrees over 1.2 s and holds, close returns it. Node TRS animation on named nodes only; no skinned rig, skeleton, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Hinged single door in a wall bay (Animated Mechanisms Kit)” asset in my project. Model: https://cdn.3dassets.dev/assets/24586/v1/model.glb Asset page: https://3dassets.dev/assets/animated-mechanisms-kit-hinged-door-ba43a8eb Description: Single steel leaf on three knuckle hinges inside a 3 m painted wall bay, with lever handles both sides, a glazed vision panel and an overhead closer arm. - Dimensions (X × Y × Z): 3 × 3.2 × 0.359 metres - Triangles: 508 - Animations: open, close - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
import { AnimationMixer } from 'three'
let mixer
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/24586/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
mixer = new AnimationMixer(gltf.scene)
mixer.clipAction(gltf.animations[0]).play()
})
// Call from your render loop; deltaSeconds is time since the previous frame.
function updateAssetAnimation(deltaSeconds) {
mixer?.update(deltaSeconds)
}Common questions
How do I use this model with my AI development tools?
How do I get started?
Which game engines and tools can I use this model with?
How do I import this model into Unity, Godot, Unreal or Blender?
Can I use this model in a commercial game, and do I need to credit anyone?
Can I load it from the CDN instead of downloading it?
Do I need Draco, Meshopt or KTX2 to load it?
Hinged single door in a wall bay (Animated Mechanisms Kit)
Single steel leaf on three knuckle hinges inside a 3 m painted wall bay, with lever handles both sides, a glazed vision panel and an overhead closer arm.
