About

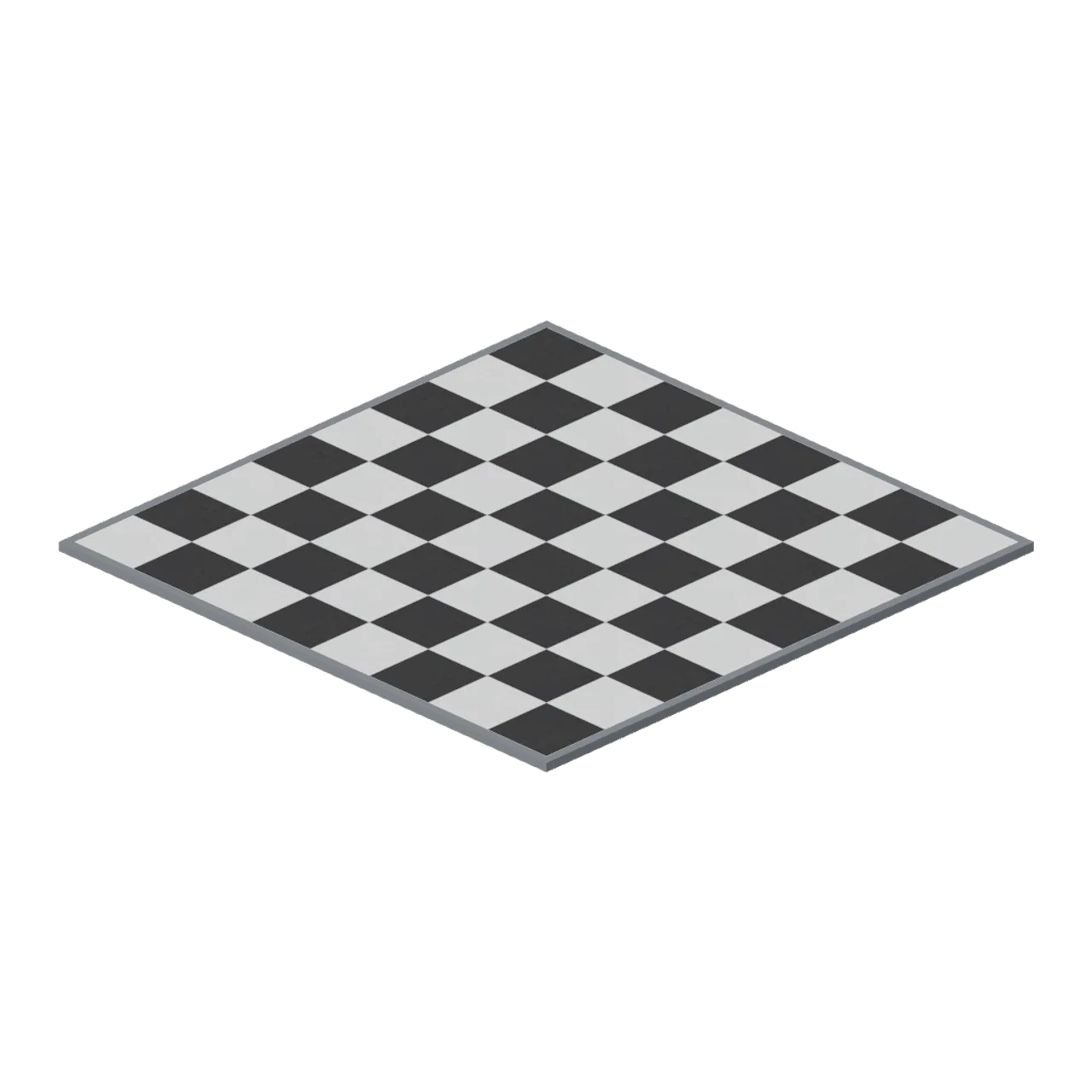

A 4 m by 4 m thin reference tile with a chequer grid field in a dark border, for laying the 4 m module out on the ground before any geometry exists. Dimensions 4.00 x 0.06 x 4.00 m (X x Y x Z). Origin at the tile centre; the tile matches one 4 m grid cell exactly. Metres, +Y up, +Z front, ground contact at y=0. Tiles butt edge to edge on the 4 m grid. Connectors: floor-west (floor-edge), floor-east (floor-edge), floor-south (floor-edge), floor-north (floor-edge). Neutral greybox palette for prototyping before art exists. Static geometry; no skinned rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Greybox 4 m grid reference tile (Modular Greybox Architecture Kit)” asset in my project. Model: https://cdn.3dassets.dev/assets/22905/v1/model.glb Asset page: https://3dassets.dev/assets/modular-greybox-architecture-kit-grid-tile-4m-b5c036a3 Description: A 4 m by 4 m thin reference tile with a chequer grid field in a dark border, for laying the 4 m module out on the ground before any geometry exists. - Dimensions (X × Y × Z): 4 × 0.06 × 4 metres - Triangles: 60 - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/22905/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Common questions
How do I use this model with my AI development tools?
How do I get started?
Which game engines and tools can I use this model with?
How do I import this model into Unity, Godot, Unreal or Blender?
Can I use this model in a commercial game, and do I need to credit anyone?
Can I load it from the CDN instead of downloading it?
Do I need Draco, Meshopt or KTX2 to load it?
Greybox 4 m grid reference tile (Modular Greybox Architecture Kit)
A 4 m by 4 m thin reference tile with a chequer grid field in a dark border, for laying the 4 m module out on the ground before any geometry exists.
