About

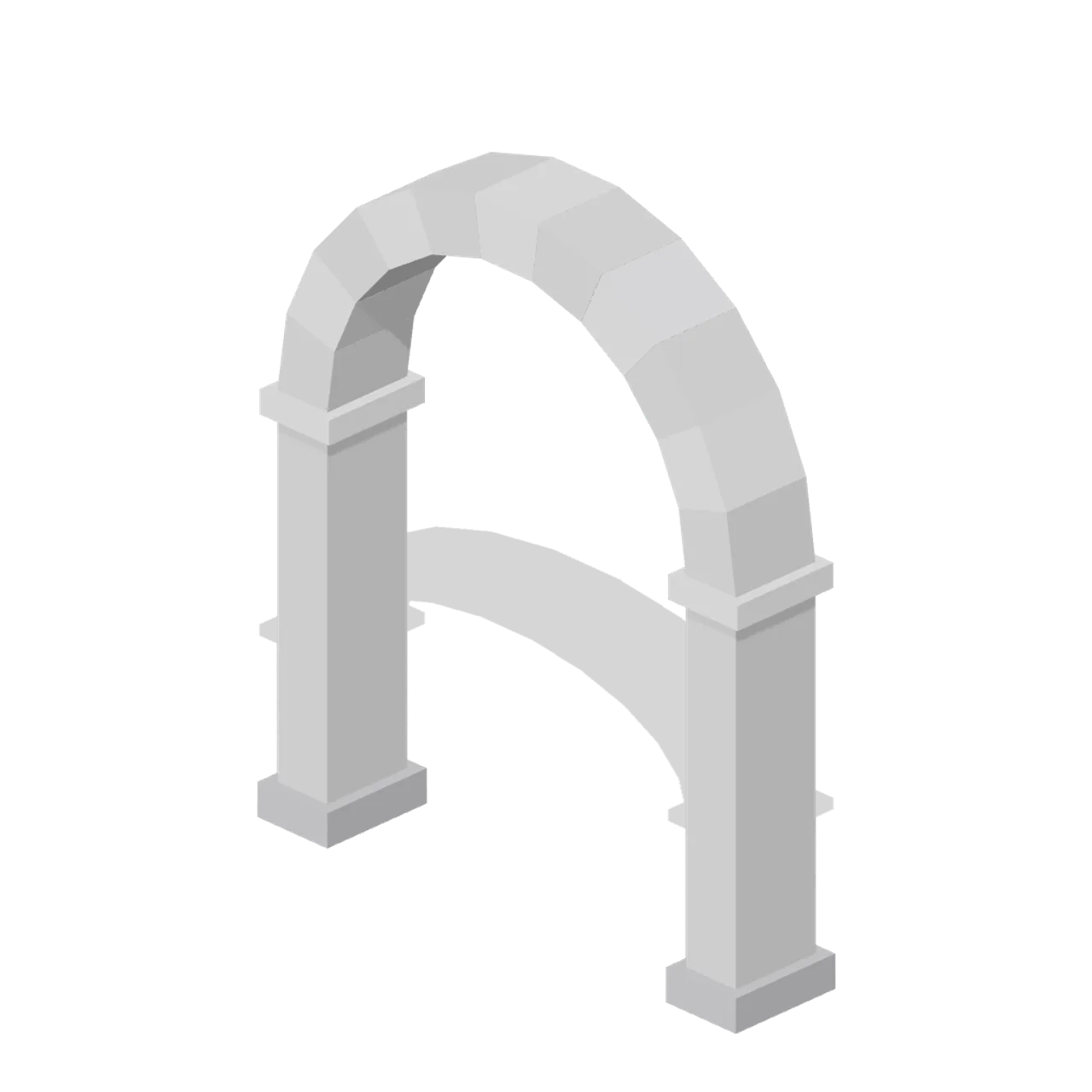

A self-supporting arch surround: two 1.7 m piers on spread bases carrying an eleven-voussoir semicircular arch over a 1.8 m by 2.6 m opening, 0.4 m deep. Dimensions 2.40 x 2.84 x 0.50 m (X x Y x Z). Origin at the centre of the opening on the floor datum; the arch springs at 1.70 m. Metres, +Y up, +Z front, ground contact at y=0. Free standing. Butt a 2 m or 4 m wall to either pier at the wall-end ports. Connectors: west (wall-end), east (wall-end). Neutral greybox palette for prototyping before art exists. Static geometry; no skinned rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Greybox semicircular arch opening (Modular Greybox Architecture Kit)” asset in my project. Model: https://cdn.3dassets.dev/assets/22891/v1/model.glb Asset page: https://3dassets.dev/assets/modular-greybox-architecture-kit-arch-opening-fa78b603 Description: A self-supporting arch surround: two 1.7 m piers on spread bases carrying an eleven-voussoir semicircular arch over a 1.8 m by 2.6 m opening, 0.4 m deep. - Dimensions (X × Y × Z): 2.4 × 2.838 × 0.5 metres - Triangles: 204 - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/22891/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Common questions
How do I use this model with my AI development tools?
How do I get started?
Which game engines and tools can I use this model with?
How do I import this model into Unity, Godot, Unreal or Blender?
Can I use this model in a commercial game, and do I need to credit anyone?
Can I load it from the CDN instead of downloading it?
Do I need Draco, Meshopt or KTX2 to load it?
Greybox semicircular arch opening (Modular Greybox Architecture Kit)
A self-supporting arch surround: two 1.7 m piers on spread bases carrying an eleven-voussoir semicircular arch over a 1.8 m by 2.6 m opening, 0.4 m deep.
