About

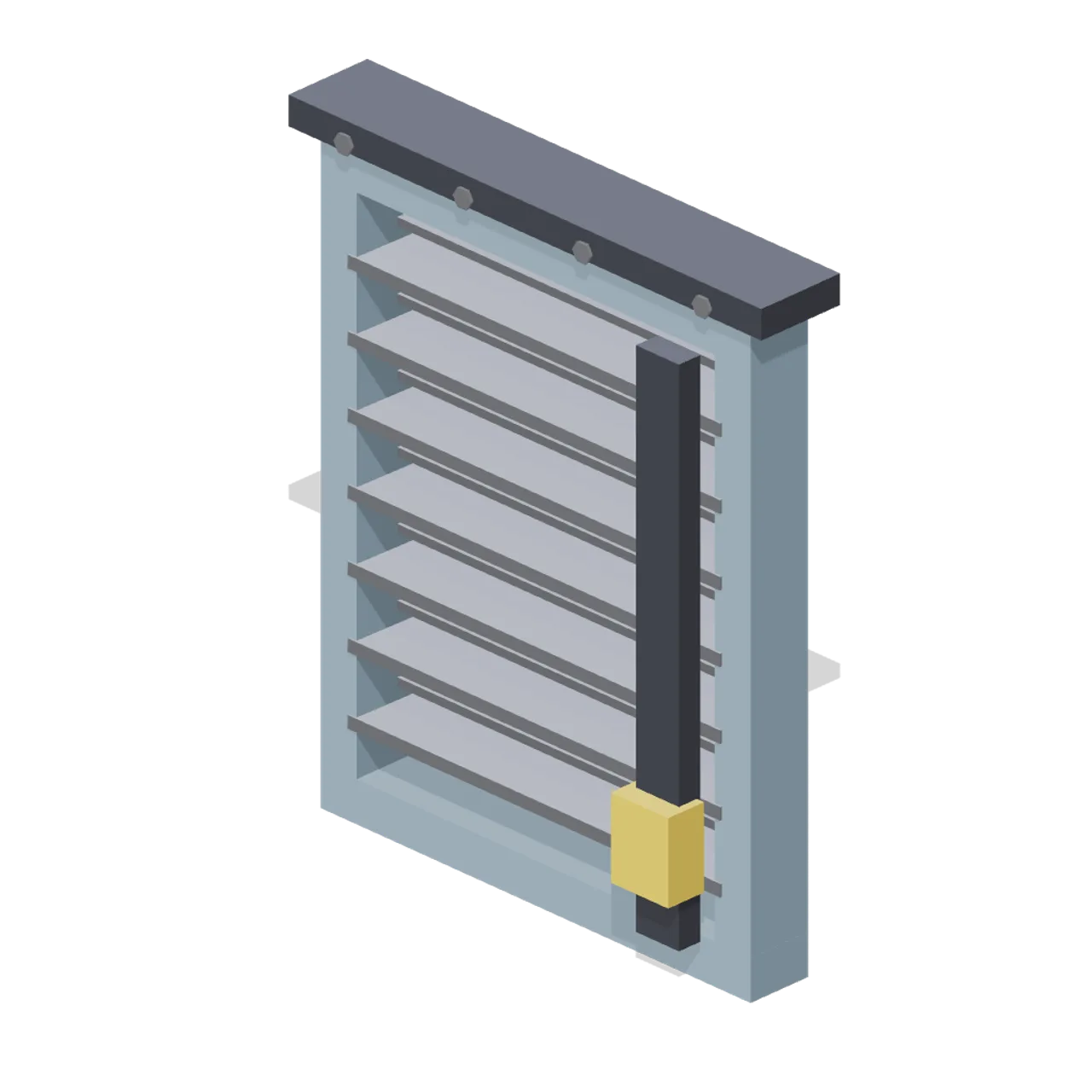

A 1.2 m by 1.57 m painted frame with a bolted head flashing carries seven 0.17 m blades pitched at 24 degrees on their own pins, connected by an iron operating link with an amber handle block on the right hand stile. Overall size 1.32 x 1.57 x 0.32 m in metres, +Y up, +Z forward, resting on y=0. Nodes slat0 to slat6 pivot on their own blade pins, all axes parallel to X, spaced 0.17 m apart. Clips: open turns all seven blades 62 degrees to the open position over 1 s, close returns them. Node TRS animation on named nodes only; no skinned rig, skeleton, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Ventilation louvre with linked blades (Animated Mechanisms Kit)” asset in my project. Model: https://cdn.3dassets.dev/assets/24631/v1/model.glb Asset page: https://3dassets.dev/assets/animated-mechanisms-kit-ventilation-louvre-8beef764 Description: Seven blade louvre panel in a painted frame with a bolted head flashing and an amber operating linkage down one side. The blades turn from closed to open together. - Dimensions (X × Y × Z): 1.32 × 1.57 × 0.32 metres - Triangles: 348 - Animations: open, close - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
import { AnimationMixer } from 'three'
let mixer
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/24631/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
mixer = new AnimationMixer(gltf.scene)
mixer.clipAction(gltf.animations[0]).play()
})
// Call from your render loop; deltaSeconds is time since the previous frame.
function updateAssetAnimation(deltaSeconds) {
mixer?.update(deltaSeconds)
}Common questions
How do I use this model with my AI development tools?
How do I get started?
Which game engines and tools can I use this model with?
How do I import this model into Unity, Godot, Unreal or Blender?
Can I use this model in a commercial game, and do I need to credit anyone?
Can I load it from the CDN instead of downloading it?
Do I need Draco, Meshopt or KTX2 to load it?
Ventilation louvre with linked blades (Animated Mechanisms Kit)
Seven blade louvre panel in a painted frame with a bolted head flashing and an amber operating linkage down one side. The blades turn from closed to open together.
