About

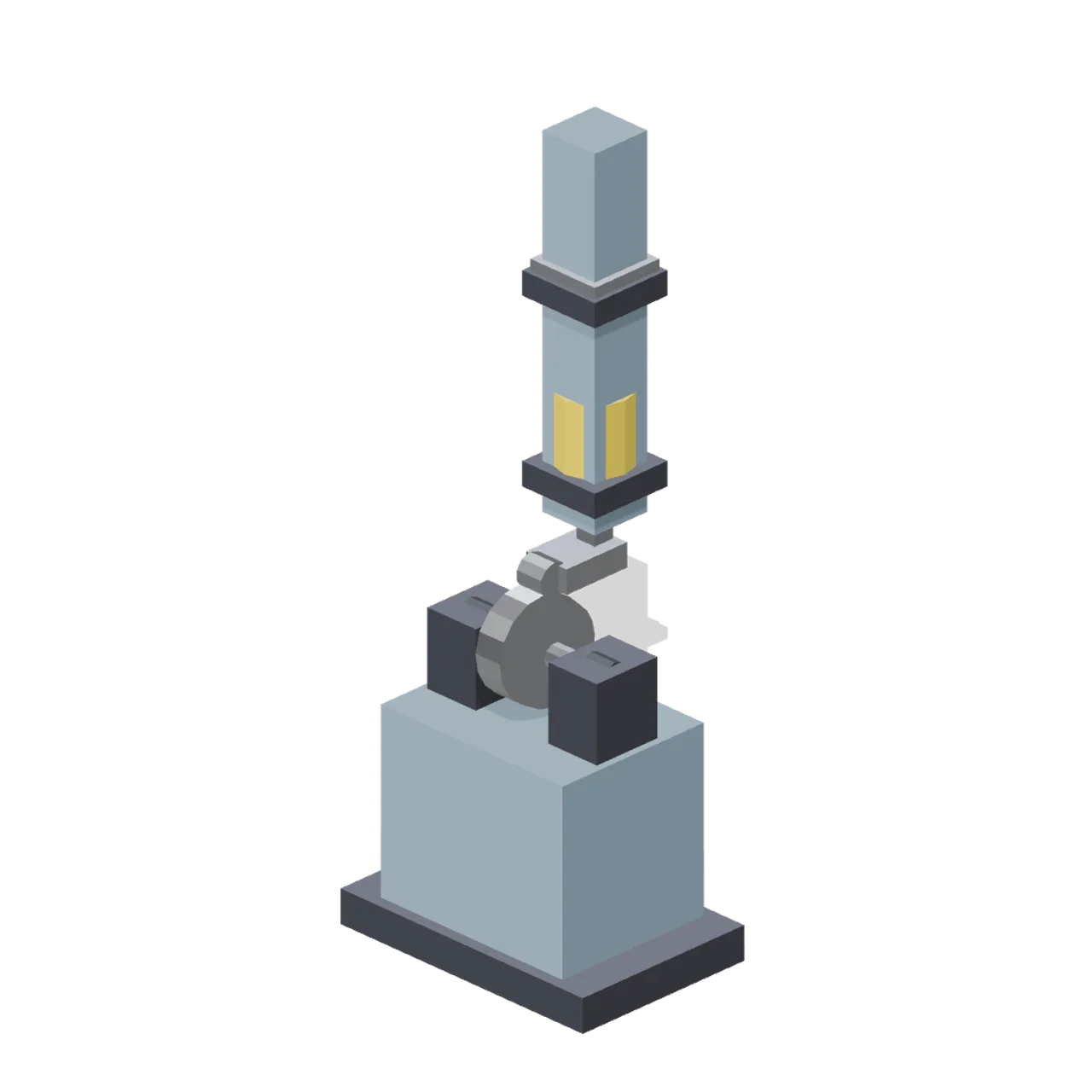

A 1.2 m bedplate and painted pedestal carry a through shaft in two bearing blocks with a 0.29 m cam disc. The follower is a guided rod with a roller yoke and a top pad running through two guide brackets, with an amber spring collar below the lower guide. Overall size 1.2 x 3.1 x 0.84 m in metres, +Y up, +Z forward, resting on y=0. Node cam turns on the shaft axis at y=1.15; node follower translates on Y in its guides. Clips: idle turns the cam one revolution over 2.4 s and lifts the follower 0.09 m on the cam rise, looping seamlessly. Node TRS animation on named nodes only; no skinned rig, skeleton, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Cam and roller follower (Animated Mechanisms Kit)” asset in my project. Model: https://cdn.3dassets.dev/assets/24614/v1/model.glb Asset page: https://3dassets.dev/assets/animated-mechanisms-kit-cam-and-follower-ef779a6a Description: Shaft mounted cam disc with a rise on one flank lifting a guided roller follower against a spring collar, on a painted pedestal with two bearing blocks. - Dimensions (X × Y × Z): 1.2 × 3.1 × 0.84 metres - Triangles: 460 - Animations: idle - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
import { AnimationMixer } from 'three'
let mixer
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/24614/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
mixer = new AnimationMixer(gltf.scene)
mixer.clipAction(gltf.animations[0]).play()
})
// Call from your render loop; deltaSeconds is time since the previous frame.
function updateAssetAnimation(deltaSeconds) {
mixer?.update(deltaSeconds)
}Common questions
How do I use this model with my AI development tools?
How do I get started?
Which game engines and tools can I use this model with?
How do I import this model into Unity, Godot, Unreal or Blender?
Can I use this model in a commercial game, and do I need to credit anyone?
Can I load it from the CDN instead of downloading it?
Do I need Draco, Meshopt or KTX2 to load it?
Cam and roller follower (Animated Mechanisms Kit)
Shaft mounted cam disc with a rise on one flank lifting a guided roller follower against a spring collar, on a painted pedestal with two bearing blocks.
