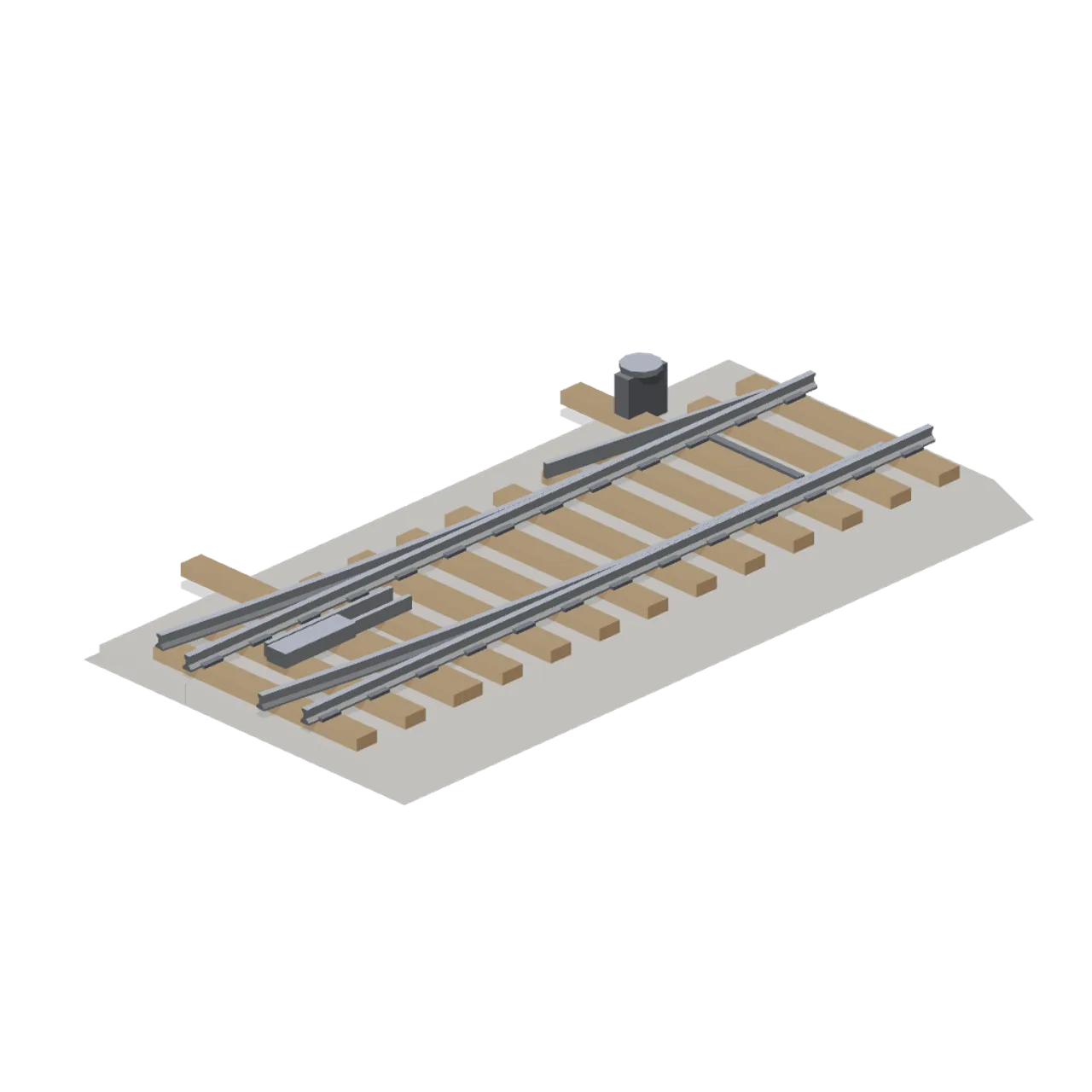

An 8 m left hand turnout: the through route runs straight from rail-a to rail-b, and the diverging route leaves on a 45 m radius to the rail-c port. Planed switch blades, long timber bearers, check rails, a crossing vee, point rodding and a ground lever are modelled. Ballast base at y=0, sleeper tops at y=0.35 and railhead top at y=0.50; 1,435 mm gauge with rail centres at x = +/- 0.7525. The module origin sits on the rail-a port at the track centreline and the module runs toward +Z. Bounding size 4.35 x 0.81 x 8.11 m (X x Y x Z). Metre units, +Y up, +Z forward, resting at y=0. Static geometry; no rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Left hand turnout (Steam Era Railway and Rolling Stock)” asset in my project. Model: https://cdn.3dassets.dev/assets/11502/v1/model.glb Asset page: https://3dassets.dev/assets/steam-era-railway-and-rolling-stock-turnout-left-cc4bf527 Description: An 8 m left hand turnout with switch blades, a curved lead, check rails, a crossing vee and a point lever. - Dimensions (X × Y × Z): 4.35 × 0.81 × 8.106 metres - Triangles: 1,084 - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/11502/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Left hand turnout (Steam Era Railway and Rolling Stock)
An 8 m left hand turnout with switch blades, a curved lead, check rails, a crossing vee and a point lever.
