About

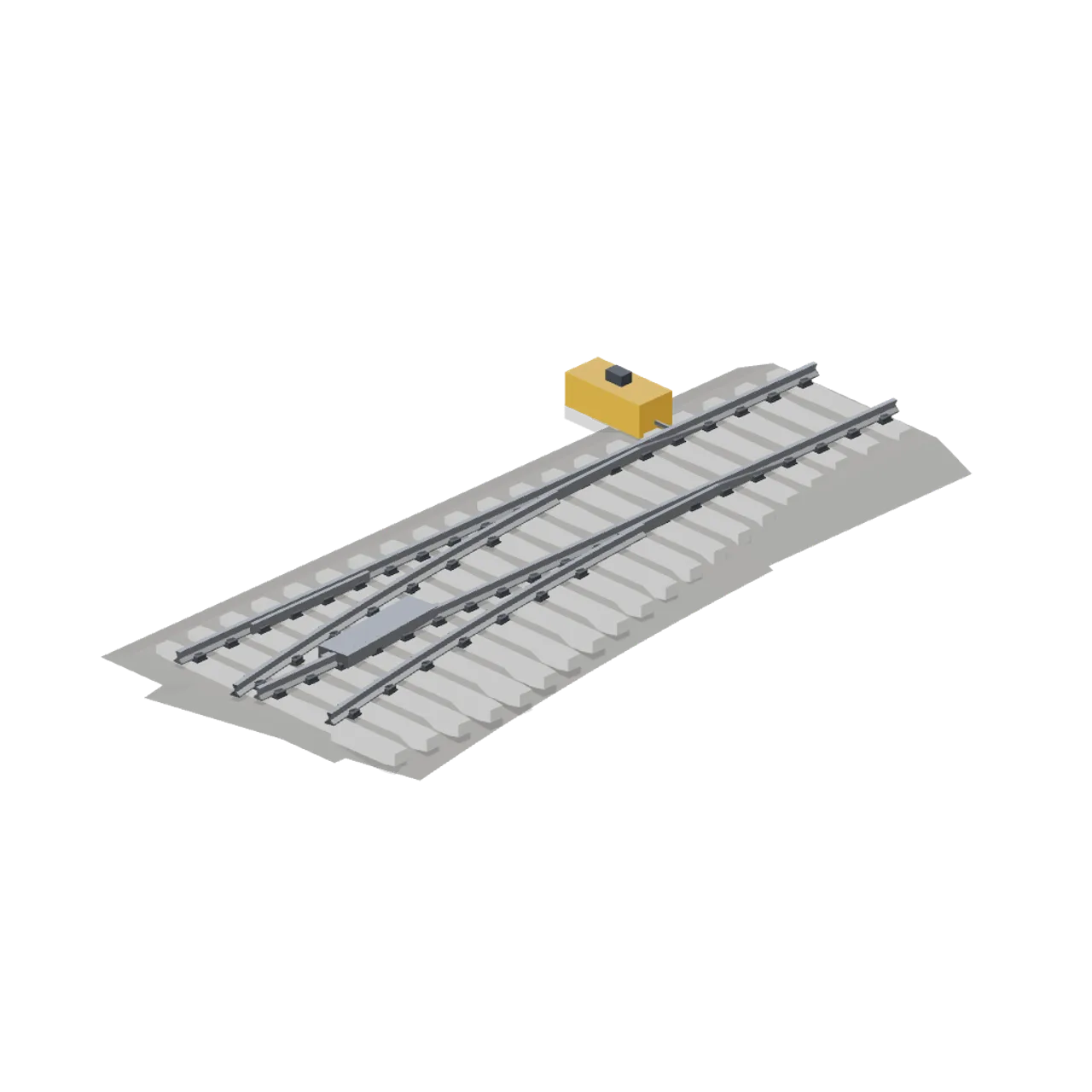

A 12 m right hand turnout: the through route runs straight from rail-a to rail-b and the diverging route leaves on a 60 m radius to the rail-c port 1.21 m to the right. Ballast base at y=0, concrete sleeper tops at y=0.41 and railhead top at y=0.60; 1,435 mm gauge with rail centres at x = +/- 0.7525. The module origin sits on the rail-a port at the track centreline and the module runs toward +Z on the 6 m grid. Bounding size 5.92 x 1.02 x 12.44 m (X x Y x Z). Metre units, +Y up, +Z forward, resting at y=0. Static geometry; no rig, collision or navigation data.

Use with an AI agent

Copy this prompt into your AI chat, then describe what you want to build with the asset.

Use the “Right hand turnout (Modern Rail and Metro Network)” asset in my project.

Model: https://cdn.3dassets.dev/assets/11590/v1/model.glb
Asset page: https://3dassets.dev/assets/modern-rail-and-metro-network-turnout-right-29b56799
Description: A 12 m right hand turnout, the handed pair to the left hand unit.

- Dimensions (X × Y × Z): 5.918 × 1.02 × 12.44 metres
- Triangles: 5,232
- Animations: none
- Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/)
- Loading: Three.js GLTFLoader; no additional decoders required.

Also available as JSON, Markdown, or via the MCP server.

Import manually

Choose your framework, then copy the code into your project to load the asset.

import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'

const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/11590/v1/model.glb', (gltf) => {
  scene.add(gltf.scene)
})

Right hand turnout (Modern Rail and Metro Network)

A 12 m right hand turnout, the handed pair to the left hand unit.

Download asset · 249.9 KB
