About
The grinding and separation half of the plant: the semi-autogenous mill and the ball mill side by side on their foundations, the hydrocyclone cluster on its lattice support between them, the thickener with its rake bridge, a bank of flotation cells feeding the filter press, the bunded reagent tank farm, the sample tower on the feed belt, and an elevated walkway module and a straight conveyor module tying the area to the rest of the plant.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Milling and separation area (Ore Processing and Haulage Plant)” asset in my project. Model: https://cdn.3dassets.dev/assets/13470/v1/model.glb Asset page: https://3dassets.dev/assets/ore-processing-and-haulage-plant-milling-and-separatio-2b5e0eff Description: Composed example for Ore Processing and Haulage Plant. - Dimensions (X × Y × Z): 54.2 × 9.82 × 73.605 metres - Triangles: 43.0k - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/13470/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
})Milling and separation area (Ore Processing and Haulage Plant)
Composed example for Ore Processing and Haulage Plant.
More in Environments & Scenes
Spring meadow tile (Turning Seasons)
Spring meadow tile in a warm, faceted storybook style.
Cathedral and Crypt Connector Cases (Vampire Crypt and Gothic Cathedral)
Composed example for Vampire Crypt and Gothic Cathedral.
West Door Graveyard (Vampire Crypt and Gothic Cathedral)
Composed example for Vampire Crypt and Gothic Cathedral.
Similar assets
Ore plant overview, crusher to loadout (Ore Processing and Haulage Plant)
Composed example for Ore Processing and Haulage Plant.
Tailings storage, water plant and site services (Ore Processing and Haulage Plant)
Composed example for Ore Processing and Haulage Plant.
Elevated plant walkway module, 12 m (Ore Processing and Haulage Plant)
A 12 m elevated access walkway module on braced trestle bents with longitudinal X bracing: a grating deck on edge channels, handrails and toe boards both sides and a stair down to grade. It bolts alongside a conveyor run or between plant areas.
Process water tank (Ore Processing and Haulage Plant)
A 10 m bolted steel process water tank on a concrete ring beam: lapped plate courses with joint bands, a conical roof with a hatch, a handrailed roof access area, a caged external ladder, a roof vent, an overflow downcomer, valved side nozzles and a level indicator board.
Belt connector cases (Ore Processing and Haulage Plant)
Composed example for Ore Processing and Haulage Plant.
Radial stacker, stockpile and reclaim tunnel (Ore Processing and Haulage Plant)
Composed example for Ore Processing and Haulage Plant.

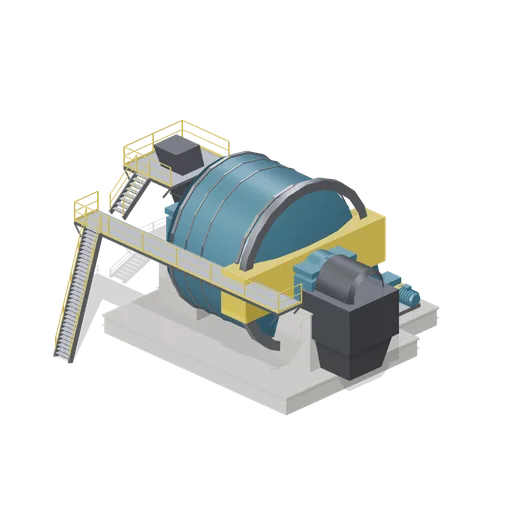

Semi-autogenous grinding mill (Ore Processing and Haulage Plant)
A semi-autogenous grinding mill: an 8 m bolted shell with flanged heads on trunnion bearings and concrete piers, a girth gear in a guard driven through a pinion motor, a feed chute, a discharge trommel, lube skids and handrailed platforms.

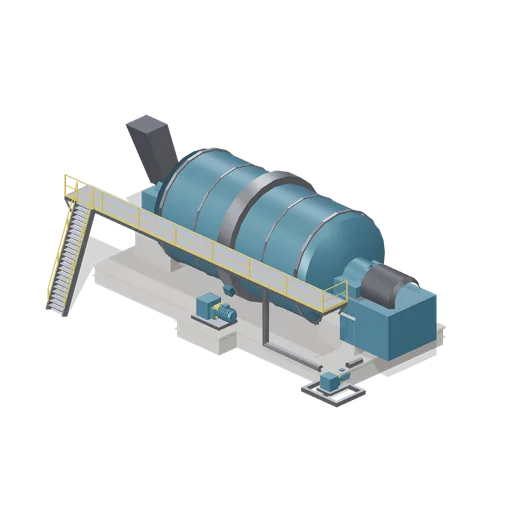

Ball mill with central drive (Ore Processing and Haulage Plant)
A ball mill: a long 5.2 m bolted shell on trunnion bearings with a central gear guard driven by pinion gearboxes both sides, a feed spout chute, a discharge trommel over a cyclone feed sump with a pump skid and riser, and a handrailed platform.
Coarse ore stockpile cone (Ore Processing and Haulage Plant)
A live coarse ore stockpile: a 30 m conical pile at the angle of repose with a drawn down crest above the reclaim feeders and coarse rock spilled around the toe.

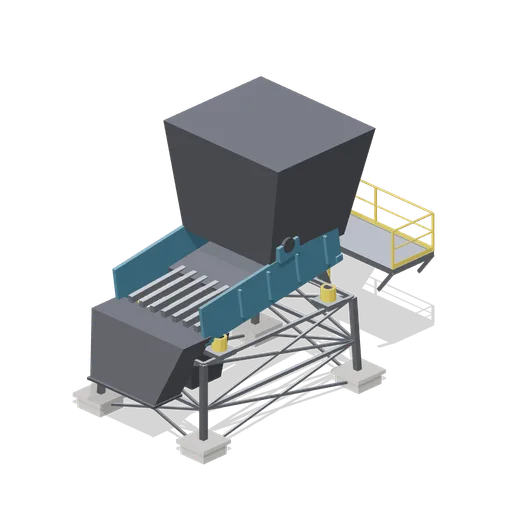

Vibrating grizzly feeder (Ore Processing and Haulage Plant)
A spring mounted vibrating grizzly feeder on a braced lattice support: a stiffened pan with tapered grizzly bars over the discharge, an exciter drive and motor guard, a bolted feed hopper, separate oversize and undersize chutes and a handrailed access platform with a stair.
Skid mounted dust suppression unit (Ore Processing and Haulage Plant)
A skid mounted dust suppression set: a bolted water tank with a ladder, a pump and motor, a control cubicle, suction and discharge pipework with a strainer, a spray bar arch of nozzles over the belt line and a fan cannon on a turret.

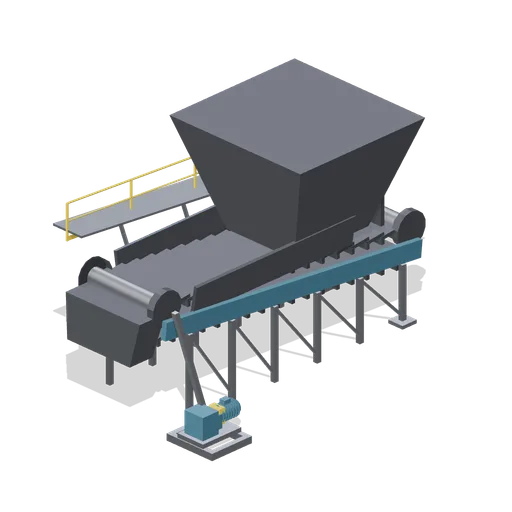

Heavy duty apron feeder (Ore Processing and Haulage Plant)
