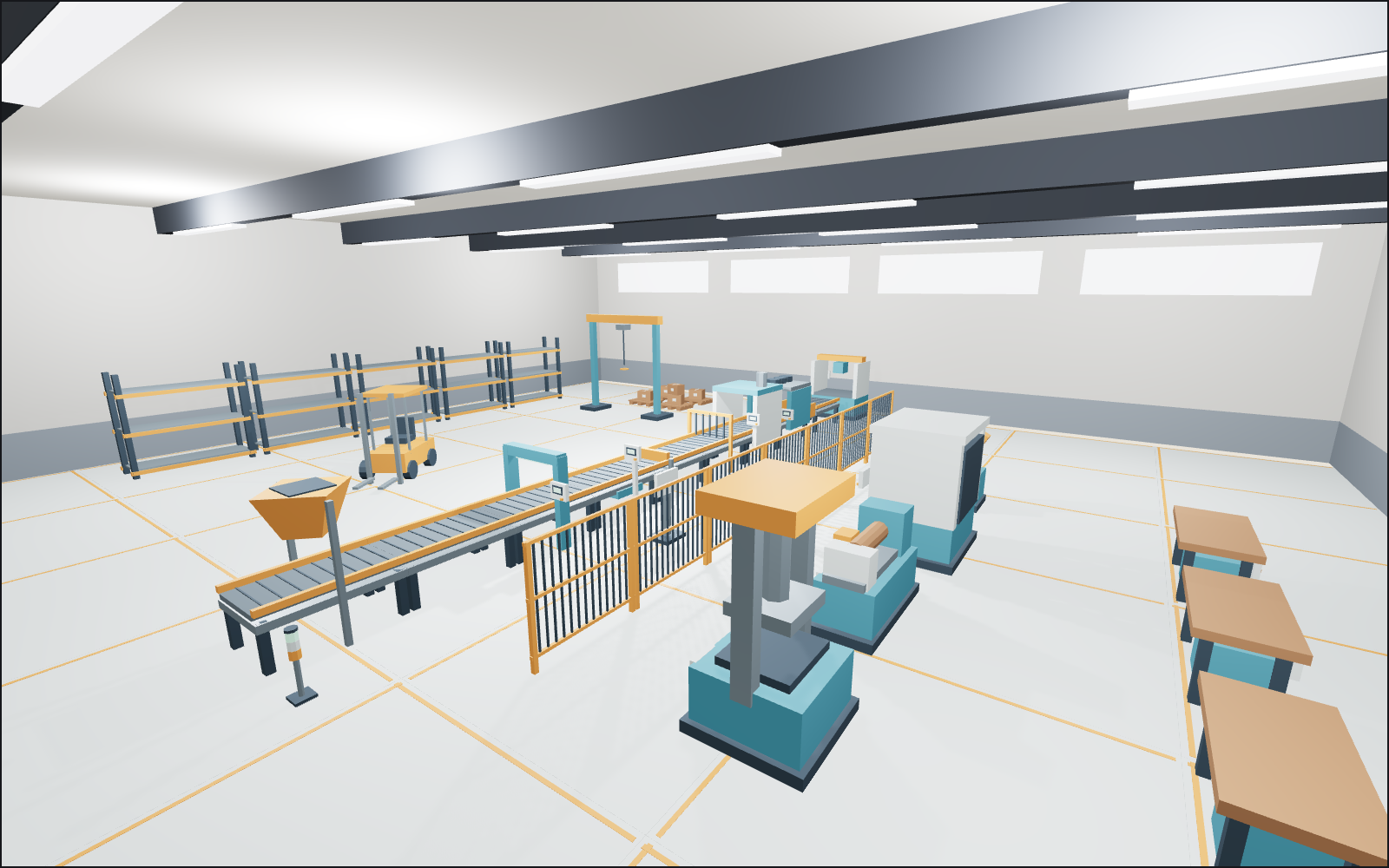

Walk a 28 by 24 metre production hall built from the Factory Conveyor Network pack: a nine-module conveyor line from hopper to packer, a fenced machining bay, pallet racking and a dispatch corner.

About

A single production hall laid out from 24 of the pack's 105 models, on the pack's own 4 m floor modules.

The line runs down the middle: loading hopper, straight belt, barcode scanning arch, weighing conveyor, retractable stop, guarded transfer, enclosed washer, drying tunnel and a discharge chute into the carton packing machine. Every belt module is 2 m long and 1.2 m wide, so the line is built by placing them end to end at 2 m steps.

To the right, behind seven safety fence panels, sit the hydraulic forming press, the metal lathe, the CNC milling enclosure and the robot assembly arm, with three workbenches along the wall. To the left are five warehouse pallet racks, a counterbalance forklift, and a dispatch corner where cartons stack on slatted pallets under the overhead hoist gantry.

Nothing moves yet: this pack ships without animation clips, so the belts, the robot arm and the forklift stand still. Colliders, navigation and the machines' behaviour are yours to add.

Every piece here is a published model from the pack, placed by hand. Walk with the keys or touch, and approach a piece to see it move if it has animation. Colliders, navigation and gameplay are yours to add.

Points of interest

Loading hopper
Parts are tipped in here and the powered belt carries them down the line. Everything on this floor is one pack at real scale.
Loading hopper conveyor (Factory Conveyor Network)
Scan and weigh
A barcode arch reads each tray, the weighing conveyor checks it, and the retractable stop holds anything that fails for the operator at this pedestal.
Weighing conveyor (Factory Conveyor Network)
Wash and dry
The enclosed washing conveyor and the drying tunnel are the same 2 m belt module as the straights, so a line is built by chaining them end to end.
Enclosed washing conveyor (Factory Conveyor Network)
Machining bay
Forming press, lathe, CNC enclosure and a robot arm behind a run of safety fence panels, with workbenches along the wall.
CNC milling enclosure (Factory Conveyor Network)
Pallet store
Five racking bays and a counterbalance forklift. The rack is 2.8 m wide, so five make a 15 m aisle.
Warehouse pallet rack (Factory Conveyor Network)
Packing end
The discharge chute drops into the carton packing machine, and finished cartons stack on pallets under the overhead hoist.
Carton packing machine (Factory Conveyor Network)

Use with an AI agent

Copy this prompt into your AI chat to rebuild the layout, then describe what to change.

Rebuild the "Factory production floor" demo scene from the Factory Conveyor Network pack in my project.

Layout (JSON, every placement with its CDN URL): https://3dassets.dev/api/v1/demos/factory-conveyor-network
Pack manifest: https://3dassets.dev/api/v1/packs/factory-conveyor-network
Demo page: https://3dassets.dev/demos/factory-conveyor-network

- 85 placements of 24 models; units are metres, +Y up, rotation is yaw in degrees about +Y
- Spawn at (0, 0, 11) facing 180 degrees; eye height 1.6 m
- Licence: CC0 1.0 Universal (no attribution required)
- Loading: three.js GLTFLoader, one load per distinct model, cloned per placement; no decoders required

Also available as JSON or Markdown, and via the MCP server.
