About

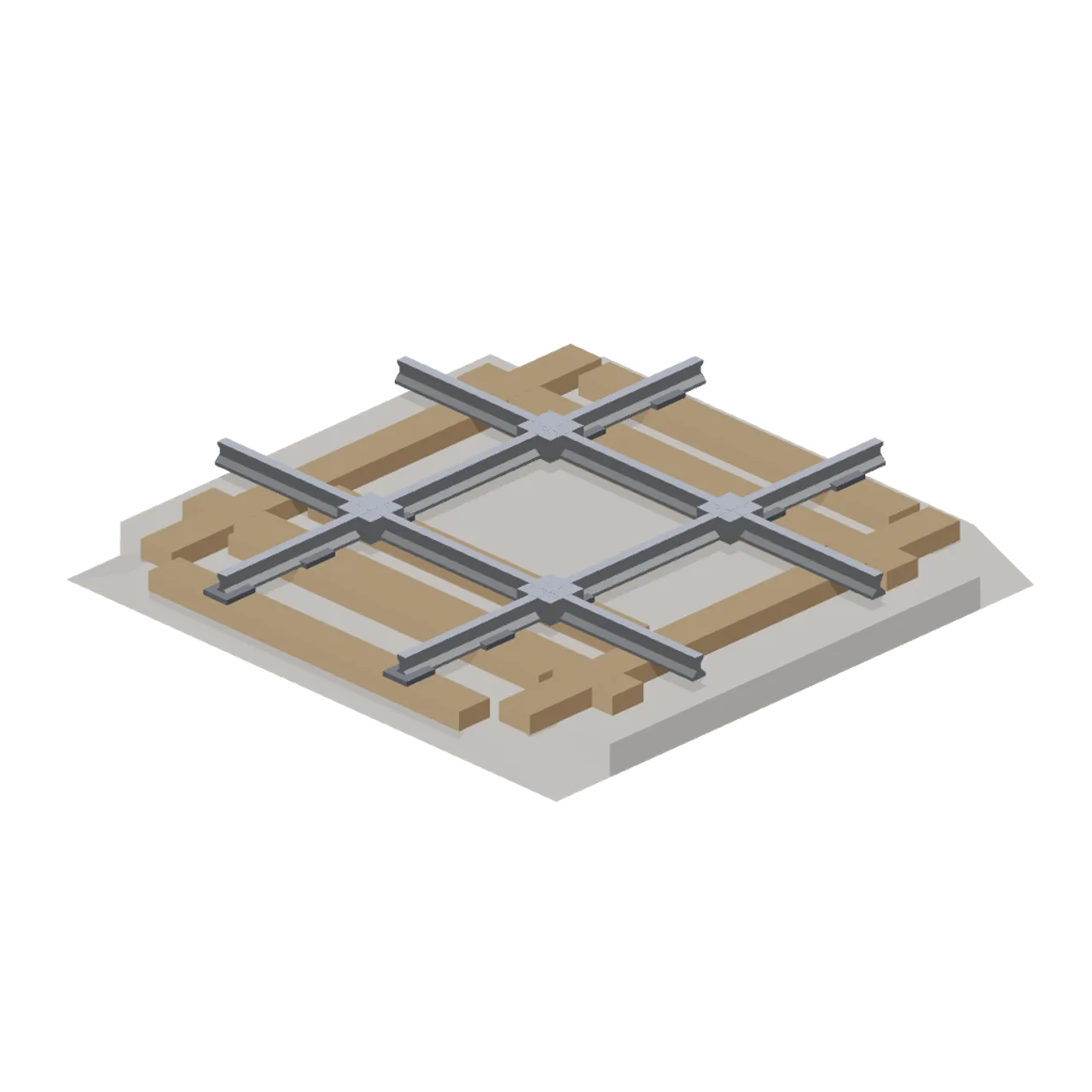

A right angle flat crossing on the 4 m grid. The north to south route runs from rail-a to rail-b; the east to west route runs from rail-c to rail-d across the middle of the module on long timber bearers. Ballast base at y=0, sleeper tops at y=0.35 and railhead top at y=0.50; 1,435 mm gauge with rail centres at x = +/- 0.7525. The module origin sits on the rail-a port at the track centreline and the module runs toward +Z. Bounding size 4.10 x 0.50 x 4.06 m (X x Y x Z). Metre units, +Y up, +Z forward, resting at y=0. Static geometry; no rig, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Right angle crossing diamond (Steam Era Railway and Rolling Stock)” asset in my project. Model: https://cdn.3dassets.dev/assets/11503/v2/model.glb Asset page: https://3dassets.dev/assets/steam-era-railway-and-rolling-stock-crossing-diamond-2de9f1c0 Description: A flat crossing where two 4 m tracks cross at right angles, with four crossing noses. - Dimensions (X × Y × Z): 4.1 × 0.5 × 4.064 metres - Triangles: 496 - Animations: none - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/11503/v2/model.glb', (gltf) => {
scene.add(gltf.scene)
})Right angle crossing diamond (Steam Era Railway and Rolling Stock)
A flat crossing where two 4 m tracks cross at right angles, with four crossing noses.
