About

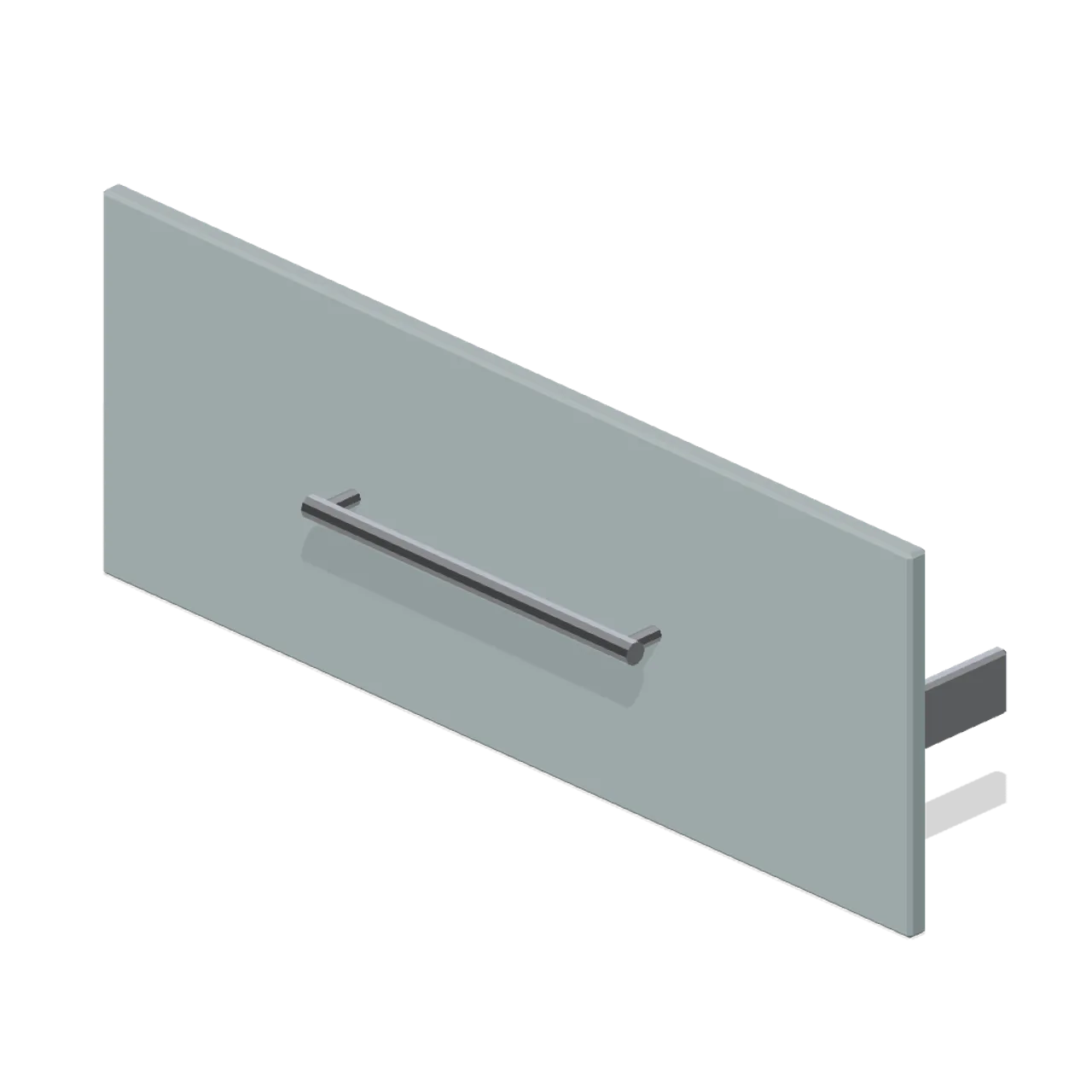

Drawer front component: 18 mm slab, 796 by 300 mm, flat style with a 320 mm bar rail and two runner brackets. Pivoted on the slide axis. Measured extent 0.796 x 0.300 x 0.163 m (X x Y x Z), metre units, +Y up, user side toward +Z, resting on y=0. Named pivoted nodes: drawer-front. Static geometry; no rig, collision or navigation data.

Use with an AI agent

Copy this prompt into your AI chat, then describe what you want to build with the asset.

Use the “Pan drawer front 800 (Fitted Kitchen and Bathroom Builder)” asset in my project.

Model: https://cdn.3dassets.dev/assets/9192/v1/model.glb
Asset page: https://3dassets.dev/assets/fitted-kitchen-and-bathroom-builder-front-pan-drawer-efc2a152
Description: Wide 796 by 300 mm pan drawer front with a long bar rail and two runner brackets.

- Dimensions (X × Y × Z): 0.796 × 0.3 × 0.163 metres
- Triangles: 296
- Animations: none
- Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/)
- Loading: Three.js GLTFLoader; no additional decoders required.

Also available as JSON, Markdown, or via the MCP server.

Import manually

Choose your framework, then copy the code into your project to load the asset.

import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'

const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/9192/v1/model.glb', (gltf) => {
  scene.add(gltf.scene)
})

Pan drawer front 800 (Fitted Kitchen and Bathroom Builder)

Wide 796 by 300 mm pan drawer front with a long bar rail and two runner brackets.

Download asset · 16.2 KB
