A 1.4 m braced base frame carries a turret ring at 1.28 m. The yoke holds a 2.18 m lathed dish tilted 62 degrees back, with a feed horn on a strut and an amber trim bar across the face. Overall size 2.18 x 2.94 x 1.93 m in metres, +Y up, +Z forward, resting on y=0. Node yoke turns on the turret axis at y=1.28, carrying the dish, strut and feed horn with it. Clips: spin turns the yoke and dish one full revolution over 5 s and loops seamlessly. Node TRS animation on named nodes only; no skinned rig, skeleton, collision or navigation data.
Use with an AI agent
Copy this prompt into your AI chat, then describe what you want to build with the asset.
Use the “Scanning radar dish on a yoke (Animated Mechanisms Kit)” asset in my project. Model: https://cdn.3dassets.dev/assets/8502/v1/model.glb Asset page: https://3dassets.dev/assets/animated-mechanisms-kit-radar-dish-79d8352b Description: Two metre parabolic dish with a feed horn on a strut, carried on a two arm yoke over a rotating turret with a braced base frame and a terminal box. - Dimensions (X × Y × Z): 2.18 × 2.936 × 1.933 metres - Triangles: 1,132 - Animations: spin - Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/) - Loading: Three.js GLTFLoader; no additional decoders required.
Also available as JSON, Markdown, or via the MCP server.
Import manually
Choose your framework, then copy the code into your project to load the asset.
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'
import { AnimationMixer } from 'three'
let mixer
const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/8502/v1/model.glb', (gltf) => {
scene.add(gltf.scene)
mixer = new AnimationMixer(gltf.scene)
mixer.clipAction(gltf.animations[0]).play()
})
// Call from your render loop; deltaSeconds is time since the previous frame.
function updateAssetAnimation(deltaSeconds) {
mixer?.update(deltaSeconds)

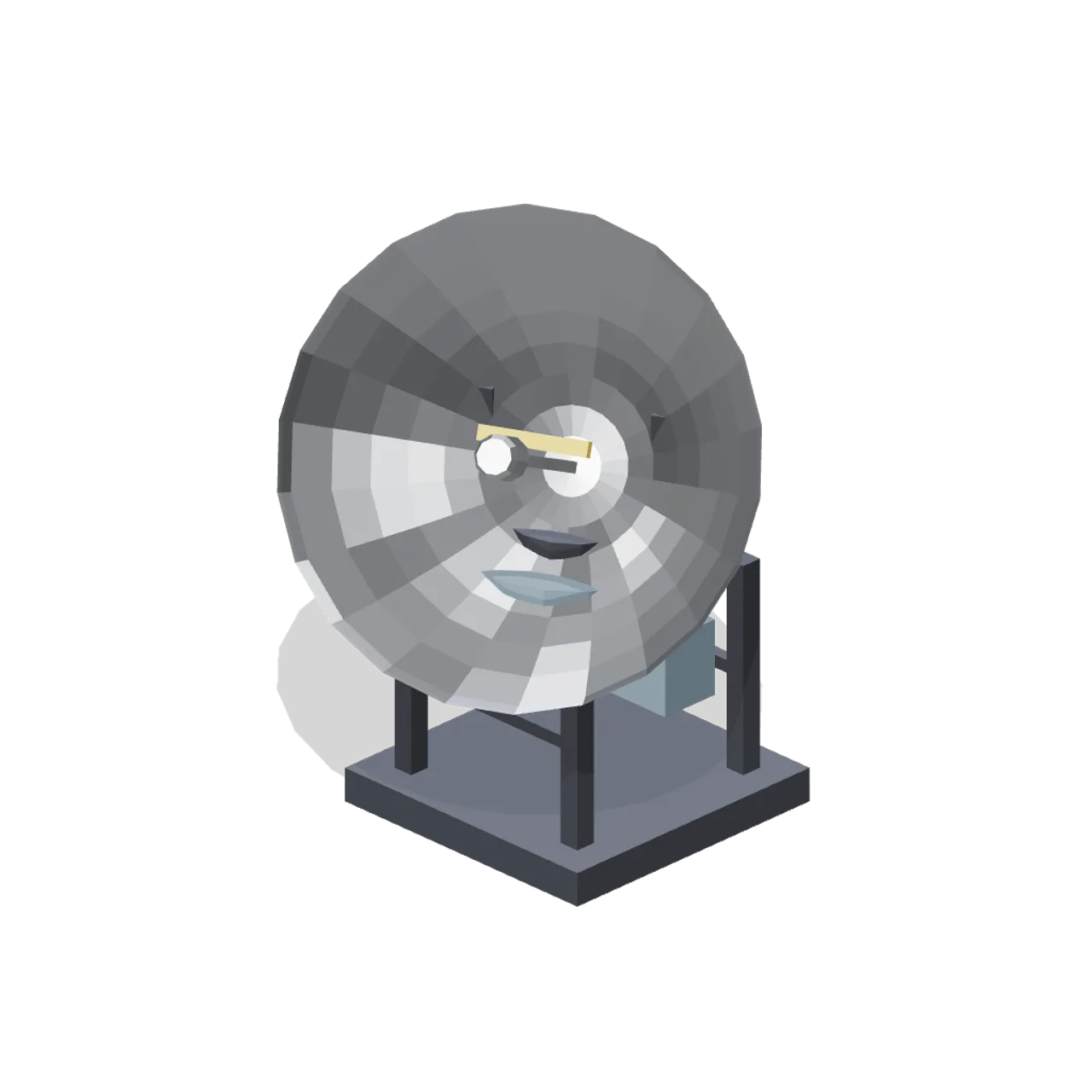

}Scanning radar dish on a yoke (Animated Mechanisms Kit)
Two metre parabolic dish with a feed horn on a strut, carried on a two arm yoke over a rotating turret with a braced base frame and a terminal box.
