About

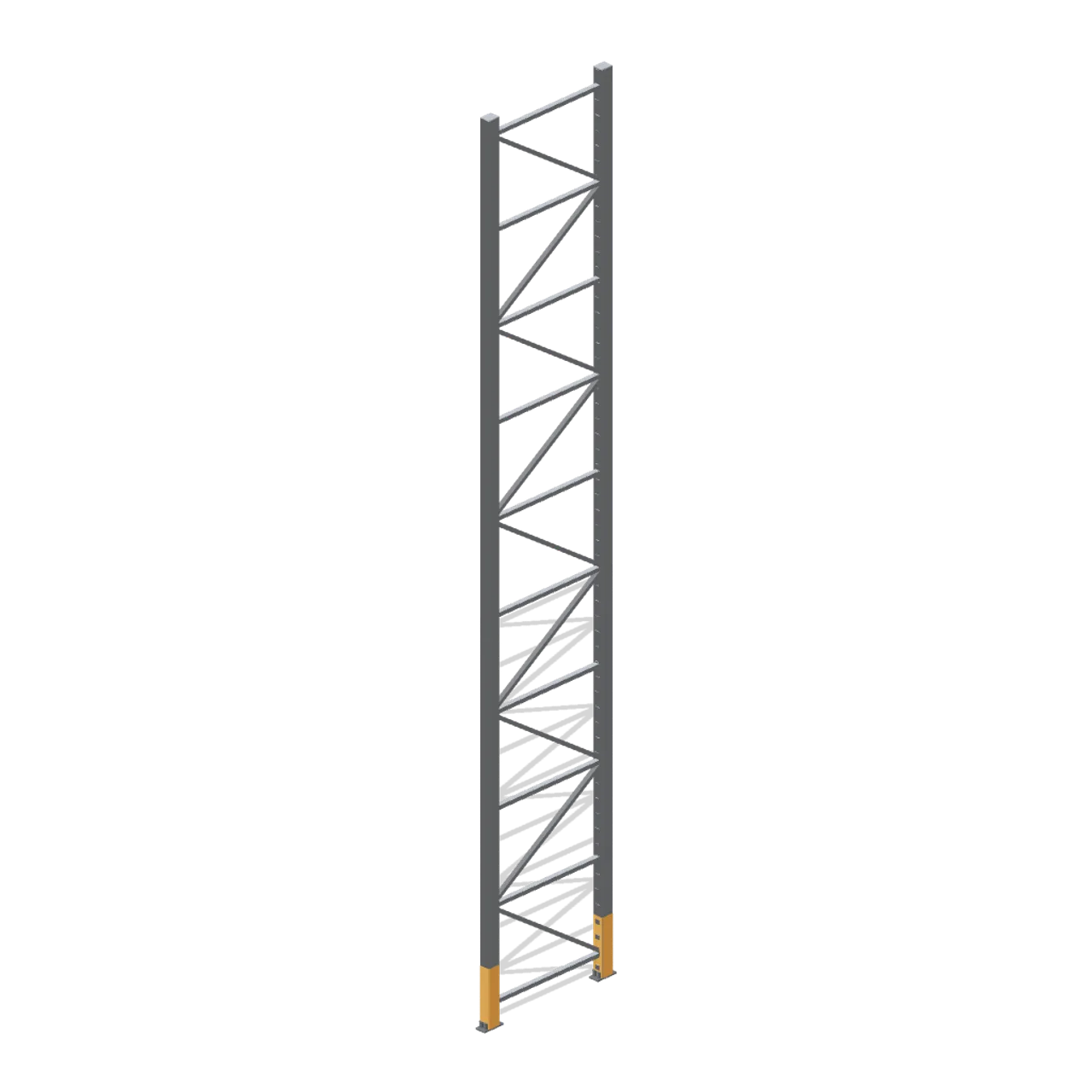

A 6 m pallet racking upright frame: two perforated columns 1.1 m apart, welded baseplates with floor anchors, horizontal ties and a full diagonal bracing lattice. Ports bay-left and bay-right sit on the upright centreline half a 1.35 m bay pitch each side, so a run alternates frame, beam level, frame along X. Modelled in metres, +Y up, with the user or aisle side toward +Z and the piece resting on y=0. Static geometry; no rig, collision or navigation data.

Use with an AI agent

Copy this prompt into your AI chat, then describe what you want to build with the asset.

Use the “Pallet rack upright frame 6 m (Hardware Store and DIY Warehouse)” asset in my project.

Model: https://cdn.3dassets.dev/assets/14069/v1/model.glb
Asset page: https://3dassets.dev/assets/hardware-store-and-diy-warehouse-pallet-rack-upright-f-523b4cae
Description: A 6 m pallet racking upright frame: two perforated columns 1.1 m apart, welded baseplates with floor anchors, horizontal ties and a full diagonal bracing lattice.

- Dimensions (X × Y × Z): 0.079 × 6 × 1.1 metres
- Triangles: 2.1k
- Animations: none
- Licence: CC0 1.0 Universal (https://creativecommons.org/publicdomain/zero/1.0/)
- Loading: Three.js GLTFLoader; no additional decoders required.

Also available as JSON, Markdown, or via the MCP server.

Import manually

Choose your framework, then copy the code into your project to load the asset.

import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js'

const loader = new GLTFLoader()
loader.load('https://cdn.3dassets.dev/assets/14069/v1/model.glb', (gltf) => {
  scene.add(gltf.scene)
})

Pallet rack upright frame 6 m (Hardware Store and DIY Warehouse)

A 6 m pallet racking upright frame: two perforated columns 1.1 m apart, welded baseplates with floor anchors, horizontal ties and a full diagonal bracing lattice.

Download asset · 103.1 KB

Similar assets

Pallet rack upright frame 4 m (Hardware Store and DIY Warehouse)

A 4 m pallet racking upright frame: two perforated columns 1.1 m apart, welded baseplates with floor anchors, horizontal ties and a full diagonal bracing lattice.

@3dassets1.6k tris

Download

Wreath frame rack (Garden Centre and Florist)

A rack of bare wreath frames: a steel A frame with three cross rails hanging copper wire rings in three diameters, plus a shelf of moss lined bases and a blank ticket holder.

@3dassets3.2k tris

Download

Pallet rack beam pair (Hardware Store and DIY Warehouse)

A 1.35 m pallet racking beam level: two box section beams 1.1 m apart with hooked end connectors, three hook lugs per end, safety lock pins and a load ledge along each top face.

@3dassets1.4k tris

Download

Rack column protector (Hardware Store and DIY Warehouse)

A 0.4 m moulded column protector: a U section wrap that clips around a racking upright, with a ribbed impact face and two retaining straps.

@3dassets584 tris

Download

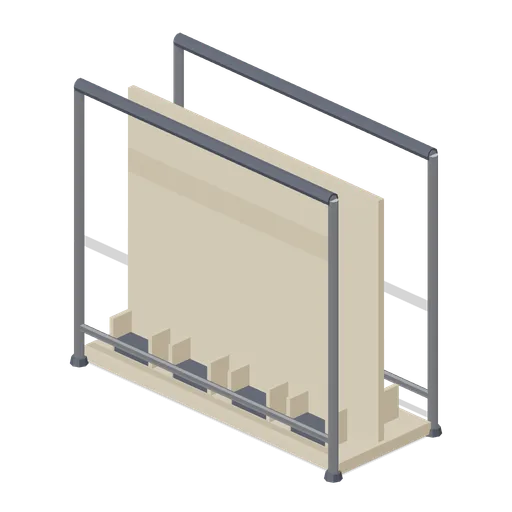

Floor board rack (Snowboard Gear and Freestyle Riders)

Freestanding double-sided floor rack with eight tail slots and a tube frame on levelling feet.

@3dassets776 tris

Download

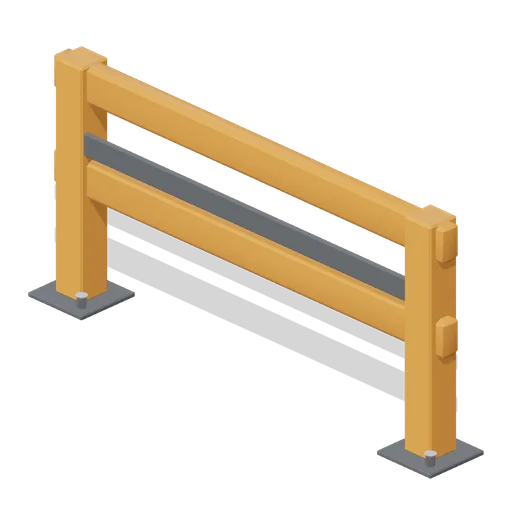

Rack end guard barrier (Hardware Store and DIY Warehouse)
